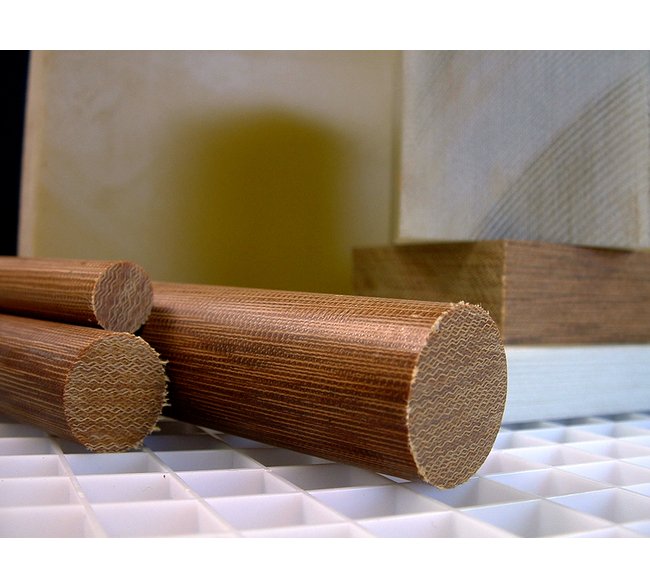

NEMA LE Linen Phenolic Rod - Natural
NEMA LE Linen Phenolic Rod - Natural
SKU:SHA-e2d07f
High-strength NEMA LE Linen Phenolic Rod with superior machinability and moisture resistance, perfect for mechanical and electrical applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
NEMA LE Linen Phenolic Rod - Natural
$59.99
Quantity: 1
Claim Your Seller Account
NEMA LE Linen Phenolic Rod - Natural
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA LE Linen Phenolic Rod in Natural finish, ground from sheet materials, offers exceptional mechanical and electrical properties. Compliant with MIL-P-15035 FBE and MIL-I-24768/13 FBE standards, this thermoset composite is renowned for its physical strength, high density, and moisture resistance. With precise dimensions, high tensile and flexural strengths, and excellent machinability, it is ideal for applications requiring durability and reliability in high-humidity environments.
Product Specifications
Specifications Coefficient Of Thermal Expansion Crosswise
1.06 x 10-5 in/in/ºF
Specifications Coefficient Of Thermal Expansion Lengthwise
1.0 x 10-5 in/in/ºF
Specifications Compressive Strength
37000 psi
Specifications Density Astm D792
0.048 g/cm³
Specifications Dielectric Strength Short Time 0125 Astm D149
625 V/mil
Specifications Flammability Rating Ul 94
HB
Specifications Flexural Modulus Crosswise Astm D790
1200000 psi
Specifications Flexural Modulus Lengthwise Astm D790
1600000 psi
Specifications Flexural Strength Crosswise Astm D790
16000 psi
Specifications Flexural Strength Lengthwise Astm D790
22000 psi
Specifications Hardness Rockwell Astm D785
M100
Specifications Izod Impact Strength Notched Crosswise Astm D256
1.10 ft·lb/in
Specifications Izod Impact Strength Notched Lengthwise Astm D256
1.35 ft·lb/in
Specifications Length
4 ft
Specifications Maximum Operating Temperature
285 ºF
Specifications Tensile Strength Crosswise Astm D638
9000 psi
Specifications Tensile Strength Lengthwise Astm D638
13000 psi
Specifications Tolerance
± 0.001 in
