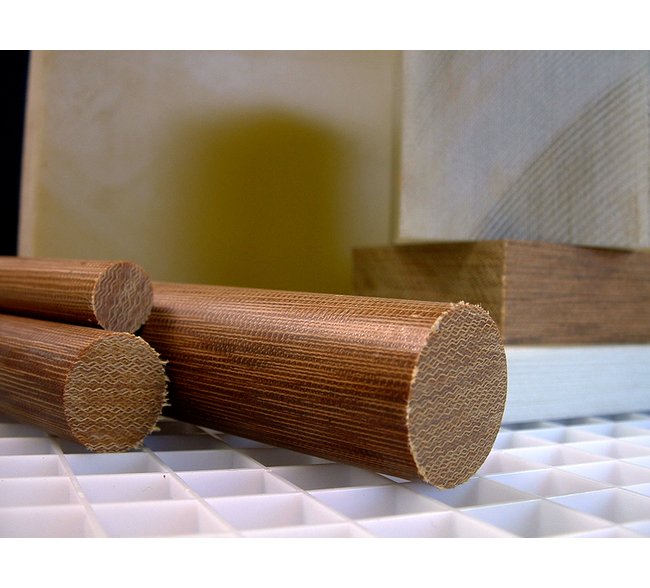

NEMA Linen Phenolic Rod - Natural
NEMA Linen Phenolic Rod - Natural
SKU:SHA-81fe2f
Enhance your applications with the NEMA Linen Phenolic Rod - Natural. Compliant with MIL-P-15035 FBE & MIL-I-24768/13, it offers superior mechanical strength and a max operating temp of 285ºF.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
NEMA Linen Phenolic Rod - Natural
$39.99
Quantity: 1
Claim Your Seller Account
NEMA Linen Phenolic Rod - Natural
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA Linen Phenolic Rod in Natural finish, ground from sheet material, offers exceptional mechanical strength with a density of 0.048 g/cm³. Compliant with MIL-P-15035 FBE and MIL-I-24768/13 FBE standards, this thermoset composite is ideal for various mechanical and electrical applications. With a high compressive strength of 37000 psi and a maximum operating temperature of 285ºF, this rod is suitable for environments requiring reliable performance and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Coefficient Of Thermal Expansion Crosswise
1.06 x 10-5 in/in/ºF
Specifications Coefficient Of Thermal Expansion Lengthwise
1.0 x 10-5 in/in/ºF
Specifications Compressive Strength
37000 psi
Specifications Density Astm D792
0.048 g/cm³
Specifications Dielectric Strength Short Time 0125 Astm D149
625 V/mil
Specifications Flammability Rating Ul 94
HB
Specifications Flexural Modulus Crosswise Astm D790
1200000 psi
Specifications Flexural Modulus Lengthwise Astm D790
1600000 psi
Specifications Flexural Strength Crosswise Astm D790
16000 psi
Specifications Flexural Strength Lengthwise Astm D790
22000 psi
Specifications Hardness Rockwell Astm D785
M100
Specifications Izod Impact Strength Notched Crosswise Astm D256
1.10 ft·lb/in
Specifications Izod Impact Strength Notched Lengthwise Astm D256
1.35 ft·lb/in
Specifications Length
4 ft
Specifications Maximum Operating Temperature
285 ºF
Specifications Tensile Strength Crosswise Astm D638
9000 psi
Specifications Tensile Strength Lengthwise Astm D638
13000 psi
Specifications Tolerance
± 0.001 in
