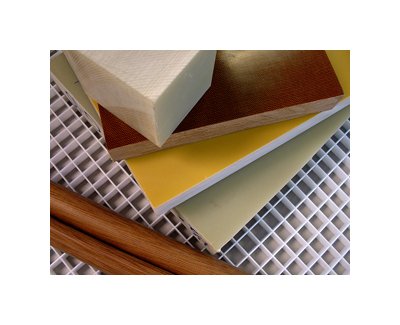

NEMA XX Paper Phenolic Sheet Natural 36x48 in - Thickness 0.062 in
NEMA XX Paper Phenolic Sheet Natural 36x48 in - Thickness 0.062 in
SKU:SHA-9440e2
High-quality NEMA XX Paper Phenolic Sheet in Natural color, 36x48 in, 0.062 in thickness. Exceptional mechanical strength & electrical properties.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
NEMA XX Paper Phenolic Sheet Natural 36x48 in - Thickness 0.062 in
$59.99
Quantity: 1
Claim Your Seller Account
NEMA XX Paper Phenolic Sheet Natural 36x48 in - Thickness 0.062 in
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NEMA XX Paper Phenolic Sheet in Natural color is a high-quality thermoset composite material that offers exceptional mechanical strength, resiliency, and excellent electrical properties. Manufactured using a combination of paper layers impregnated with synthetic thermosetting resins, this phenolic laminate is ideal for a wide range of mechanical and electrical applications. With superior physical strength, ease of fabrication, and resistance to softening, it is the perfect choice for support components like insulating washers, spacers, and electrical terminals. This sheet meets stringent ASTM standards, ensuring reliability and durability in diverse industrial settings.
Product Specifications
Specifications Coefficient Of Thermal Expansion Crosswise
1.20 x 10-5 in/in/ºF
Specifications Coefficient Of Thermal Expansion Lengthwise
0.80 x 10-5 in/in/ºF
Specifications Compressive Strength
32000 psi
Specifications Density Astm D792
0.049 g/cm³
Specifications Dielectric Strength Short Time 0125 Astm D149
750 V/mil
Specifications Flammability Rating Ul 94
HB
Specifications Flexural Modulus Crosswise Astm D790
900000 psi
Specifications Flexural Modulus Lengthwise Astm D790
1100000 psi
Specifications Flexural Strength Crosswise Astm D790
13200 psi
Specifications Flexural Strength Lengthwise Astm D790
16000 psi
Specifications Hardness Rockwell Astm D785
M100
Specifications Izod Impact Strength Notched Crosswise Astm D256
0.60 ft·lb/in
Specifications Izod Impact Strength Notched Lengthwise Astm D256
0.65 ft·lb/in
Specifications Maximum Operating Temperature
257 ºF
Specifications Sheet Size
36 x 48 in
Specifications Tensile Strength Crosswise Astm D638
12000 psi
Specifications Tensile Strength Lengthwise Astm D638
15000 psi
Specifications Thickness
0.062 in
Specifications Tolerance
± 0.0075 in
Specifications Weight
0.442 lb/ft²
