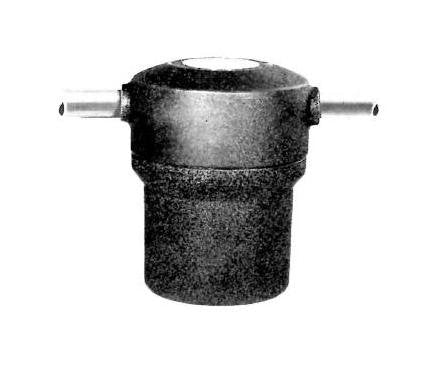

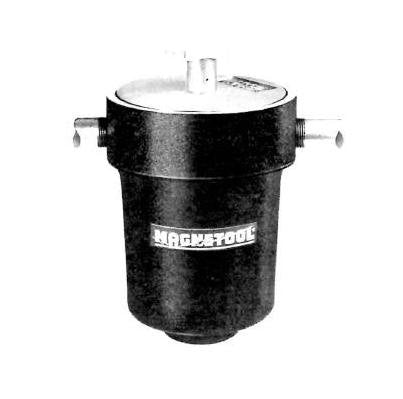

The Neodymium Fluid Line Filter by Magnetool offers unparalleled protection against ferrous metal chips, filings, and dust in coolant systems, minimizing tool and workpiece damage during machining operations. Designed for efficiency and durability, this filter features stainless steel tubes enclosing powerful neodymium magnets, ensuring long-lasting performance without the need for frequent maintenance. With various capacity options and a maximum pressure of 100 psi, this filter is a reliable solution for trapping iron contaminants and maintaining optimal machining conditions.
Product Specifications
Additional Information 0
Alnico magnet material is standard. Neodymium magnet material is available for fine tramp iron (less than 35 microns) and weakly magnetic contamination.
Manufacturing Notes 0
Standard Pipe Thread Size: Use reducers for other pipe sizes
Specifications Applications

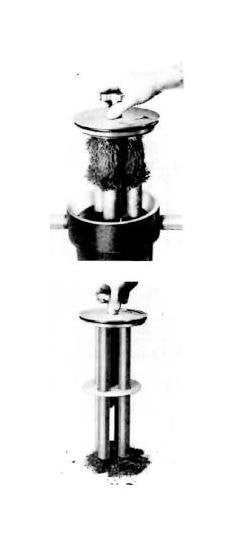

Trap the iron that damages your tools. | To clean, remove outer case, exposing cleaning sleeve. | Slide cleaning sleeve assembly down until clear of magnets. Trapped parts fall off.
Specifications Capacity
5 gpm | 16 gpm | 25 gpm
Specifications Housing Material
Aluminum
Specifications Magnet Material
Neodymium
Specifications Maximum Pressure
100 psi
Specifications Net Weight
20 lb
Specifications Pipe Size
1/2 in | 3/4 in | 1 in
Specifications Standard Pipe Thread Size
1 in NPT
