Neodymium Fluid Line Filter
Neodymium Fluid Line Filter
SKU:FLU-021624
Protect tools from ferrous metal damage with the Neodymium Fluid Line Filter. Durable, easy to clean, and high-performance for machining operations.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Neodymium Fluid Line Filter
$299.99
Quantity: 1
Claim Your Seller Account
Neodymium Fluid Line Filter
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

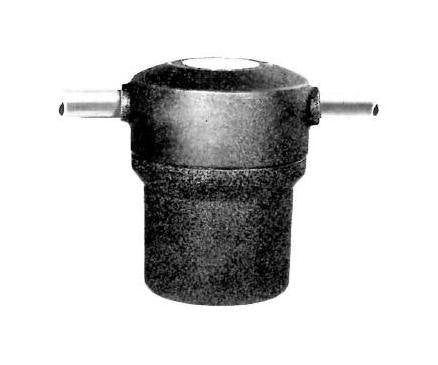

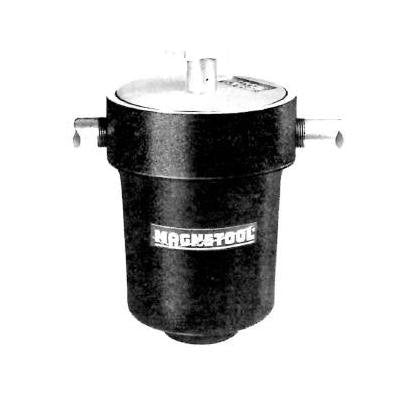

The Neodymium Fluid Line Filter is a high-performance solution for reducing tool and work piece damage from ferrous metal chips. By trapping these particles in the coolant system during machining operations, it prevents flow back to the reservoir, enhancing tool longevity and minimizing downtime. Featuring stainless steel construction and Neodymium magnet material, this filter offers maximum durability. With a capacity range of 5-25 gpm and easy maintenance, it ensures continuous protection for your equipment.
Product Specifications
Additional Information 0
Alnico magnet material is standard. Neodymium magnet material is available for fine tramp iron (less than 35 microns) and weakly magnetic contamination.
Manufacturing Notes 0
Standard Pipe Thread Size: Use reducers for other pipe sizes
Specifications Applications

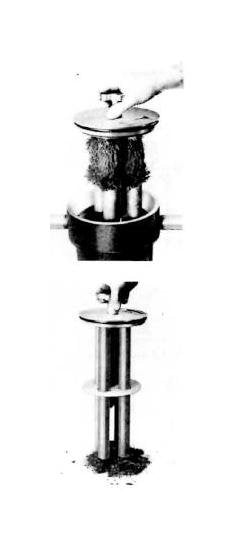

Trap the iron that damages your tools. | To clean, remove outer case, exposing cleaning sleeve. | Slide cleaning sleeve assembly down until clear of magnets. Trapped parts fall off.
Specifications Capacity
5 gpm | 16 gpm | 25 gpm
Specifications Housing Material
Stainless Steel
Specifications Magnet Material
Neodymium
Specifications Maximum Pressure
100 psi
Specifications Net Weight
20 lb
Specifications Pipe Size
1/2 in | 3/4 in | 1 in
Specifications Standard Pipe Thread Size
1 in NPT
