Neodymium Fluid Line Filter
Neodymium Fluid Line Filter
SKU:FLU-b9ec9f
Protect your machinery with the Neodymium Fluid Line Filter - efficient, durable, and easy to maintain for optimal performance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Neodymium Fluid Line Filter
$129.99
Quantity: 1
Claim Your Seller Account
Neodymium Fluid Line Filter
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

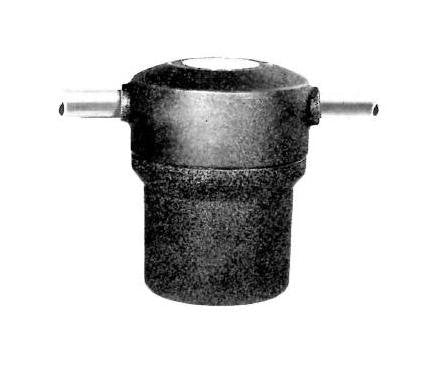

The Neodymium Fluid Line Filter is a premium solution for safeguarding your machinery from ferrous metal chips, filings, and dust that can cause damage during machining operations. Designed with high-quality neodymium magnets and stainless steel housing, this filter effectively traps iron contaminants, reducing tool breakage and extending work hours between reconditions. With specifications including various pipe sizes, a maximum pressure of 200 psi, and easy maintenance, this filter ensures uninterrupted operation and prolongs tool lifespan.
Product Specifications
Additional Information 0
Alnico magnet material is standard. Neodymium magnet material is available for fine tramp iron (less than 35 microns) and weakly magnetic contamination.
Manufacturing Notes 0
Standard Pipe Thread Size: Use reducers for other pipe sizes
Specifications Applications

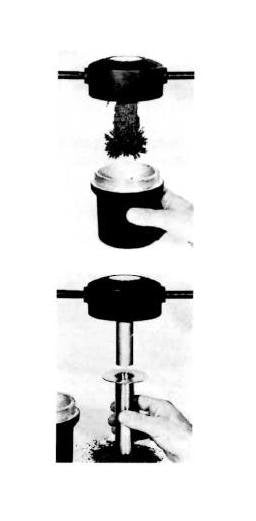

Trap the iron that damages your tools. | To clean, remove outer case, exposing cleaning sleeve. | Slide cleaning sleeve assembly down until clear of magnets. Trapped parts fall off.
Specifications Capacity
1 gpm | 2 1/2 gpm | 5 gpm
Specifications Housing Material
Stainless Steel
Specifications Magnet Material
Neodymium
Specifications Maximum Pressure
200 psi
Specifications Net Weight
4.5 lb
Specifications Pipe Size
1/4 in | 3/8 in | 1/2 in
Specifications Standard Pipe Thread Size
1/2 in NPT
