Neoprene Parallel Lamp and Heater Cord Wire

Name: Neoprene Parallel Lamp and Heater Cord Wire
Brand: Consolidated Electronic Wire & Cable
SKU: PAR-486c82
Price: 29.99 USD
Availability: OutOfStock

SKU:PAR-486c82

Reliable Neoprene Cord Wire for lamps and heaters, meets UL standards, RoHS compliant, ideal for various applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

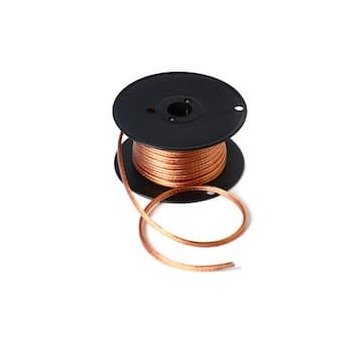

The Neoprene Parallel Lamp and Heater Cord Wire is a reliable solution for both consumer and institutional applications. With 2 Bare Copper Conductors in a parallel construction, this cord wire meets UL SPT-1 and SPT-2, VW-1, and FT2 Flame Test standards. The ribbed polarity stripe ensures easy installation. Featuring Neoprene insulation with a thickness of 0.045 inches, a temperature rating of 90 ºC, and a voltage of 300 V, this cord wire is durable and efficient. The black jacket color, along with a nominal outside diameter of 0.148 x 0.285 inches, enhances its versatility. RoHS compliant and manufactured by Consolidated Electronic Wire & Cable, this product ensures quality and safety.

Product Specifications

Note Note

All specifications are subjected to change without prior notice.

Technical Specs Brands

Consolidated Electronic Wire & Cable

Technical Specs Certification

Restriction of Hazardous Substances (RoHS) Compliant

Technical Specs Construction

18 (41 x 34) Bare Copper (BC)

Technical Specs Construction Product Regulation Cpr

Technical Specs Insulation

Neoprene

Technical Specs Insulation Thickness

0.045 in

Technical Specs Jacket Color

Black

Technical Specs Nominal Outside Diameter Od

0.148 x 0.285 in

Technical Specs Style

HPN

Technical Specs Temperature Rating

90 ÂºC

Technical Specs Voltage

300 V
