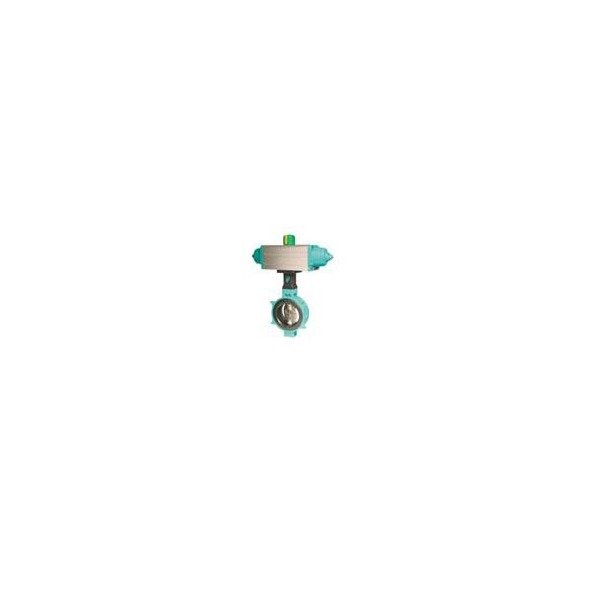

New Aluminum Diacast Butterfly Valve Series
New Aluminum Diacast Butterfly Valve Series
SKU:VAL-6f5381
Upgrade to the New Aluminum Diecast Butterfly Valve Series for superior condensation prevention and reliable performance in industrial settings.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
New Aluminum Diacast Butterfly Valve Series
$89.99
Quantity: 1
Claim Your Seller Account
New Aluminum Diacast Butterfly Valve Series
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

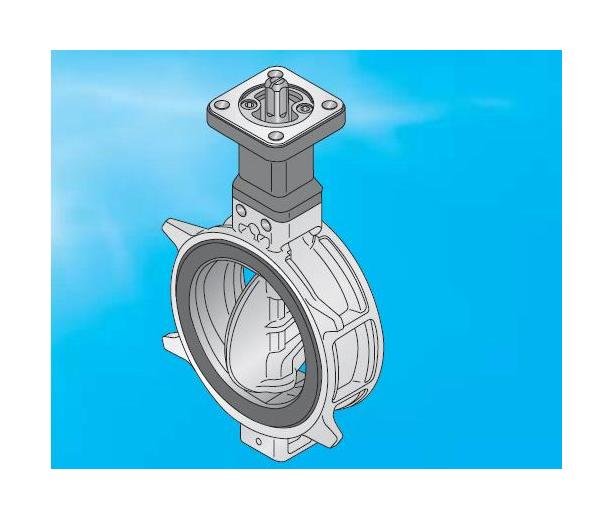

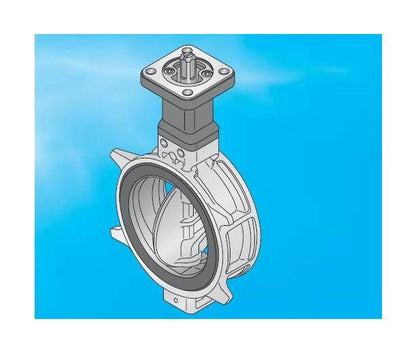

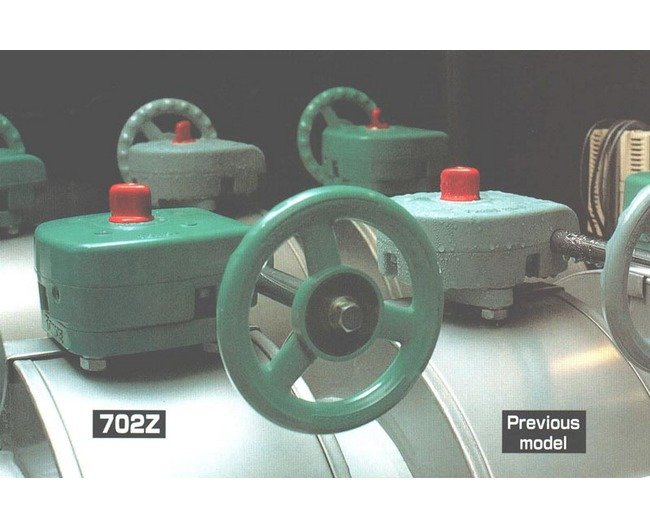

Introducing the innovative New Anti-Condensation Aluminum Diecast Butterfly Valve Series, an upgraded version of the popular 702Z model. Engineered with a high-performance plastic top plate and aluminum diecast body, this valve effectively prevents dew condensation, enabling seamless auto-actuation with its ISO top flange design. Experience superior condensation prevention performance, ensuring a reliable operation even under challenging environmental conditions. With a robust construction and precise design standards, this valve is ideal for a wide range of industrial applications.
Product Specifications

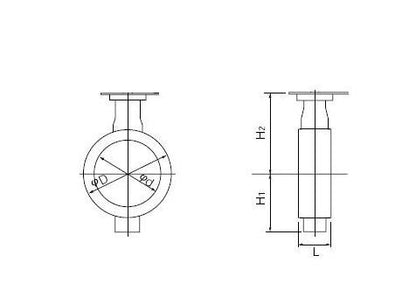

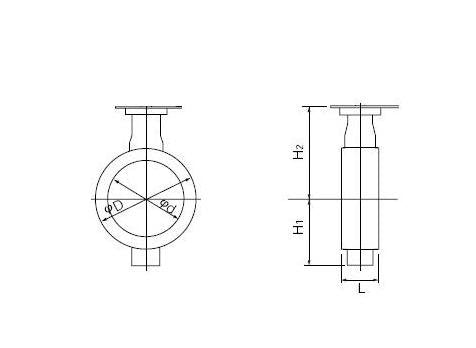

Dimensional Information D
80 mm
Dimensional Information H1
61 mm
Dimensional Information H2
132 mm
Dimensional Information L
35.0 mm
Flange Information Ansi 125lb150lb Effective Screw Long Bolts Le
32 mm
Flange Information Ansi 125lb150lb Long Bolts And Nuts
U1/2
Flange Information Ansi 125lb150lb Long Bolts Length
110 mm
Flange Information Ansi 125lb150lb Number Of Long Bolts
4
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | DIN PN10 | JIS 5K/10K
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
38 mm
Flange Information Jis 10k Effective Screw Long Bolts Length
25 mm
Flange Information Jis 10k Hexagon Boltsnuts
M16
Flange Information Jis 10k Hexagon Boltsnuts Length
90 mm
Flange Information Jis 10k Long Bolts And Nuts
M16
Flange Information Jis 10k Long Bolts Length
110 mm
Flange Information Jis 10k Number Of Hexagon Boltsnuts
4
Flange Information Jis 10k Number Of Long Bolts
4
Flange Information Jis 5k Effective Screw Hexagon Boltsnuts Leng
30 mm
Flange Information Jis 5k Effective Screw Long Bolts Length
25 mm
Flange Information Jis 5k Hexagon Boltsnuts
M12
Flange Information Jis 5k Hexagon Boltsnuts Length
75 mm
Flange Information Jis 5k Long Bolts And Nuts
M12
Flange Information Jis 5k Long Bolts Length
95 mm
Flange Information Jis 5k Number Of Hexagon Boltsnuts
4
Flange Information Jis 5k Number Of Long Bolts
4

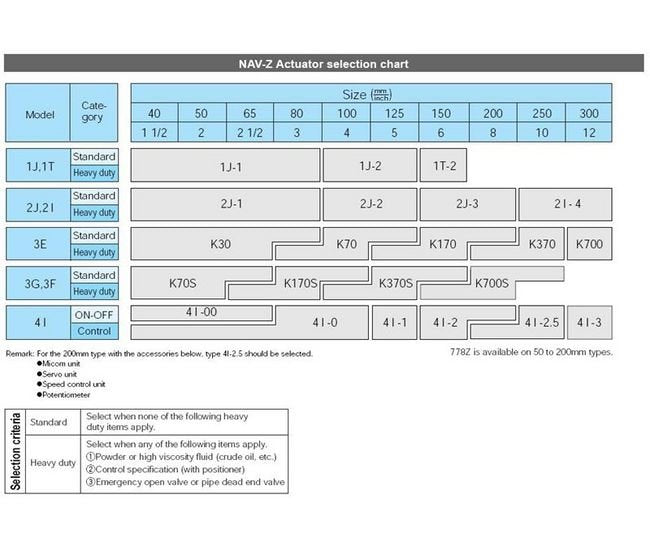

Specifications Actuators
Double Acting Pneumatic Cylinder 3E | Lock Lever | Single Acting Pneumatic Cylinder Type 3F | Single Acting Pneumatic Cylinder Type 3G | Single Phase Electric Motor | Worm Gear
Specifications Actuator Category
Control | Heavy Duty | ON-OFF | Standard
Specifications Actuator Mounting Flange
ISO 5211
Specifications Body Material
Aluminum Diecast Alloy
Specifications Body Shell Test Hydraulic
1.75 MPa
Specifications Column Material
Engineering Plastic
Specifications Cylinder Type
K30 | K70S
Specifications Design Standard
JISB2032
Specifications Direction Of Cylinder Motor
Perpendicular | Standard
Specifications Disc Material
Coated | Stainless Steel Type 316
Specifications Face To Face Dimensions
ISO 5752/JIS B2032
Specifications Seat Material
EPDM | NBR
Specifications Size
040 - 1-1/2"
Specifications Stem Material
Stainless Steel Type 420J2
