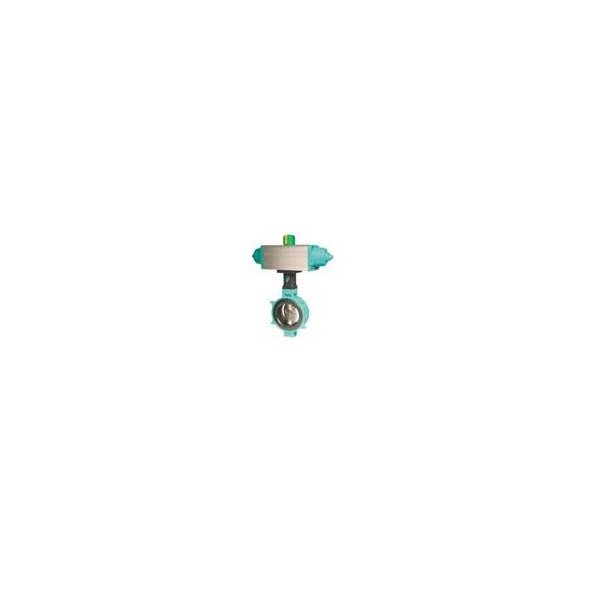

New Anti-Condensation Aluminum Butterfly Valve 773Z
New Anti-Condensation Aluminum Butterfly Valve 773Z
SKU:VAL-192522

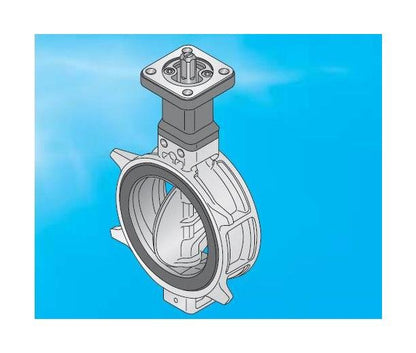

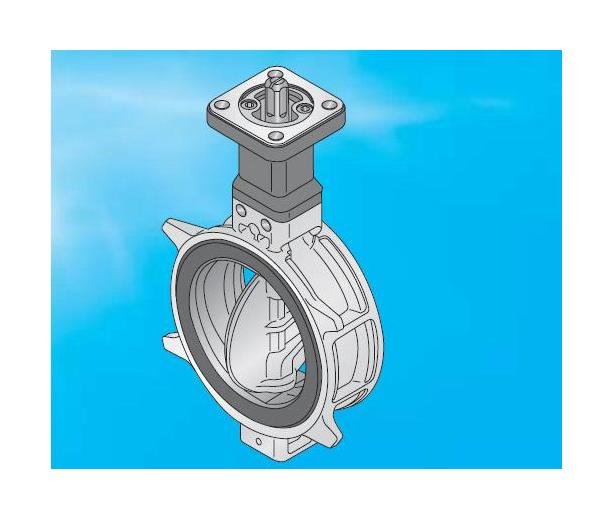

Revolutionary anti-condensation aluminum butterfly valve with high-performance engineering plastic top plate for dew prevention and ISO top flange design.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
New Anti-Condensation Aluminum Butterfly Valve 773Z
$299.99
Quantity: 1
Claim Your Seller Account
New Anti-Condensation Aluminum Butterfly Valve 773Z
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

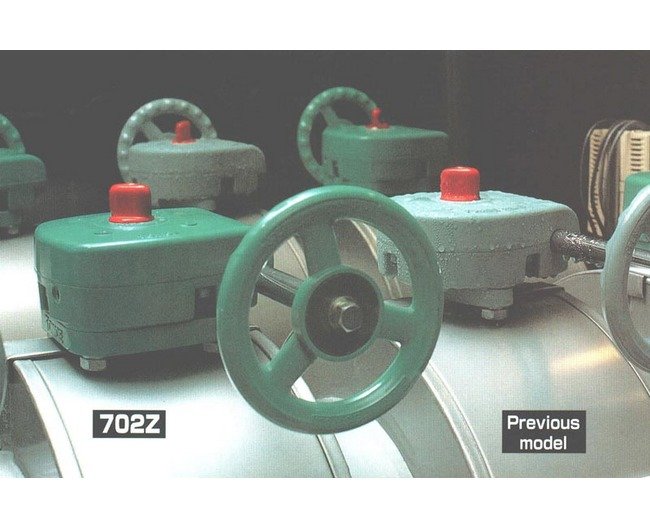

The New Anti-Condensation Aluminum Butterfly Valve Series 773Z is a cutting-edge solution with an aluminum diecast body that extends the capabilities of the popular 702Z model. Featuring a high-performance engineering plastic top plate, this valve prevents dew condensation and enables seamless auto-actuation with its ISO top flange design. With a remarkable condensation prevention performance, this valve ensures no condensation on the actuator and mounting flange under specific temperature and humidity conditions.
Product Specifications

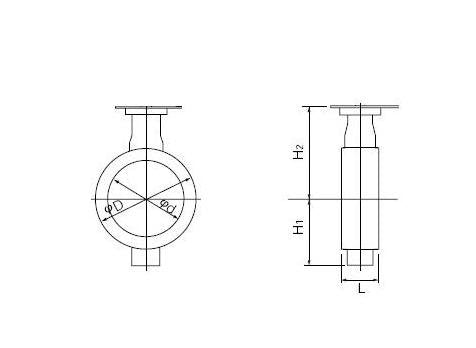

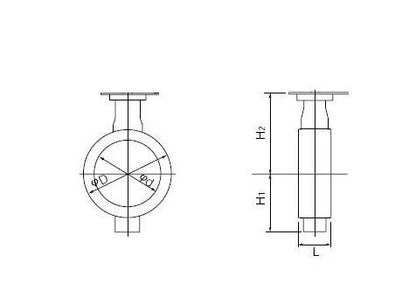

Dimensional Information D
322 mm
Dimensional Information H1
215 mm
Dimensional Information H2
280 mm
Dimensional Information L
68 mm
Flange Information Ansi 125lb150lb Effective Screw Long Bolts Le
58 mm
Flange Information Ansi 125lb150lb Long Bolts And Nuts
U7/8
Flange Information Ansi 125lb150lb Long Bolts Length
195 mm
Flange Information Ansi 125lb150lb Number Of Long Bolts
12
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | DIN PN10 | JIS 5K/10K
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
60 mm
Flange Information Jis 10k Effective Screw Long Bolts Length
45 mm
Flange Information Jis 10k Hexagon Boltsnuts
M22
Flange Information Jis 10k Hexagon Boltsnuts Length
150 mm
Flange Information Jis 10k Long Bolts And Nuts
M22
Flange Information Jis 10k Long Bolts Length
175 mm
Flange Information Jis 10k Number Of Hexagon Boltsnuts
12
Flange Information Jis 10k Number Of Long Bolts
12
Flange Information Jis 5k Effective Screw Hexagon Boltsnuts Leng
52 mm
Flange Information Jis 5k Effective Screw Long Bolts Length
40 mm
Flange Information Jis 5k Hexagon Boltsnuts
M20
Flange Information Jis 5k Hexagon Boltsnuts Length
140 mm
Flange Information Jis 5k Long Bolts And Nuts
M20
Flange Information Jis 5k Long Bolts Length
165 mm
Flange Information Jis 5k Number Of Hexagon Boltsnuts
12
Flange Information Jis 5k Number Of Long Bolts
12

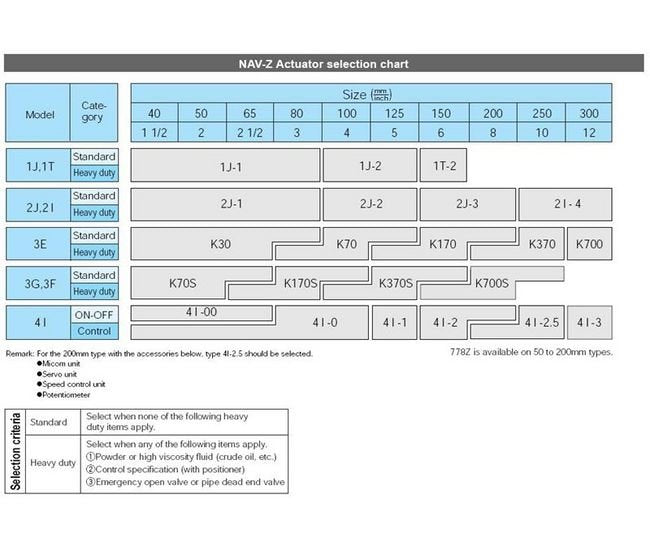

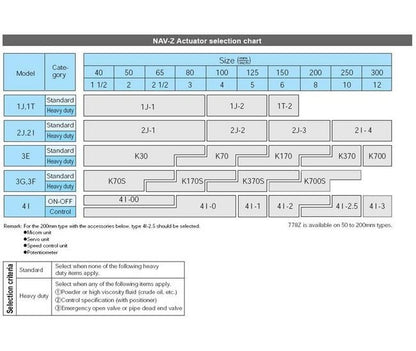

Specifications Actuators
Double Acting Pneumatic Cylinder 3E | Single Acting Pneumatic Cylinder Type 3F | Single Acting Pneumatic Cylinder Type 3G | Single Phase Electric Motor | Worm Gear
Specifications Actuator Category
Control | Heavy Duty | ON-OFF | Standard
Specifications Actuator Mounting Flange
ISO 5211
Specifications Body Material
Aluminum Diecast Alloy
Specifications Body Shell Test Hydraulic
1.75 MPa
Specifications Column Material
Engineering Plastic
Specifications Cylinder Type
K370 | K700S
Specifications Design Standard
JISB2032
Specifications Direction Of Cylinder Motor
Perpendicular | Standard
Specifications Disc Material
Coated | Stainless Steel Type 316
Specifications Face To Face Dimensions
ISO 5752/JIS B2032
Specifications Seat Material
EPDM | NBR
Specifications Size
250 - 10"
Specifications Stem Material
Stainless Steel Type 420J2
