New Anti-Condensation Aluminum Diecast Butterfly Valve - Series 773Z
New Anti-Condensation Aluminum Diecast Butterfly Valve - Series 773Z
SKU:VAL-1d560e
Revolutionary aluminum diecast butterfly valve - Series 773Z: Prevents condensation, ensures high performance, and meets JISB2032 standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
New Anti-Condensation Aluminum Diecast Butterfly Valve - Series 773Z
$129.99
Quantity: 1
Claim Your Seller Account
New Anti-Condensation Aluminum Diecast Butterfly Valve - Series 773Z
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

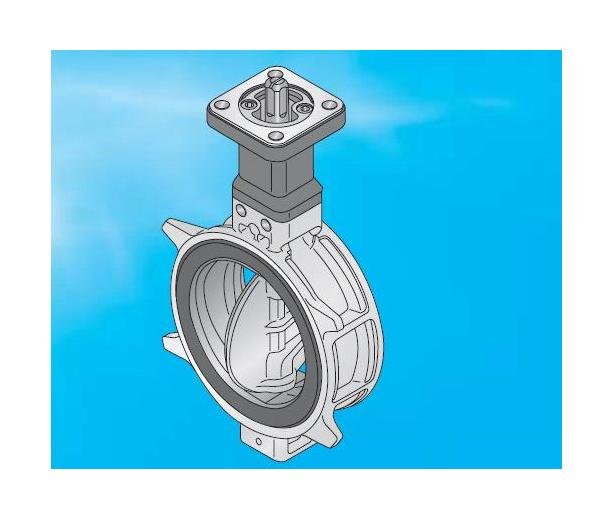

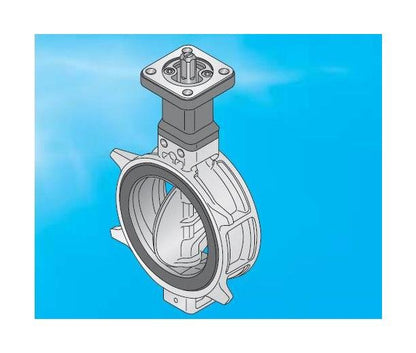

The New Anti-Condensation Aluminum Diecast Butterfly Valve Series 773Z is a revolutionary solution with a high-performance engineering plastic top plate and aluminum diecast body. Designed to prevent dew condensation and allow auto-actuation with ISO top flange design, this valve ensures optimal performance under various conditions. With superior condensation prevention capabilities and a robust construction, this valve is an extended model of our best-selling 702Z, meeting JISB2032 design standards and offering a wide range of actuator options. From its epoxy-melanin baked body shell to EPDM working temperature range, this valve is a reliable choice for demanding applications.
Product Specifications

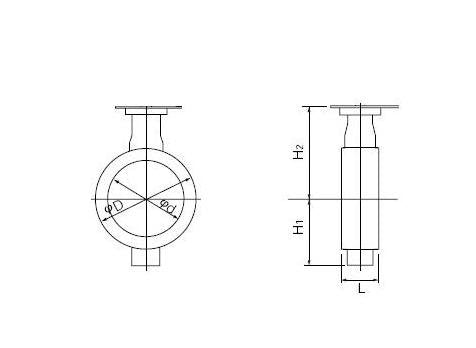

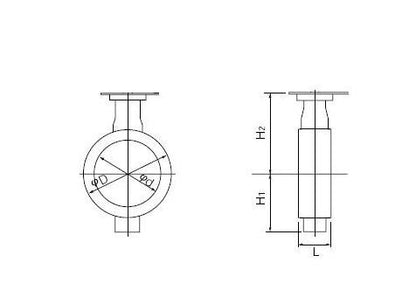

Dimensional Information D
91 mm
Dimensional Information H1
66 mm
Dimensional Information H2
138 mm
Dimensional Information L
43 mm
Flange Information Ansi 125lb150lb Effective Screw Long Bolts Le
38 mm
Flange Information Ansi 125lb150lb Long Bolts And Nuts
U5/8
Flange Information Ansi 125lb150lb Long Bolts Length
140 mm
Flange Information Ansi 125lb150lb Number Of Long Bolts
4
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | DIN PN10 | JIS 5K/10K
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
38 mm
Flange Information Jis 10k Effective Screw Long Bolts Length
30 mm
Flange Information Jis 10k Hexagon Boltsnuts
M16
Flange Information Jis 10k Hexagon Boltsnuts Length
100 mm
Flange Information Jis 10k Long Bolts And Nuts
M16
Flange Information Jis 10k Long Bolts Length
120 mm
Flange Information Jis 10k Number Of Hexagon Boltsnuts
4
Flange Information Jis 10k Number Of Long Bolts
4
Flange Information Jis 5k Effective Screw Hexagon Boltsnuts Leng
30 mm
Flange Information Jis 5k Effective Screw Long Bolts Length
25 mm
Flange Information Jis 5k Hexagon Boltsnuts
M12
Flange Information Jis 5k Hexagon Boltsnuts Length
90 mm
Flange Information Jis 5k Long Bolts And Nuts
M12
Flange Information Jis 5k Long Bolts Length
105 mm
Flange Information Jis 5k Number Of Hexagon Boltsnuts
4
Flange Information Jis 5k Number Of Long Bolts
4

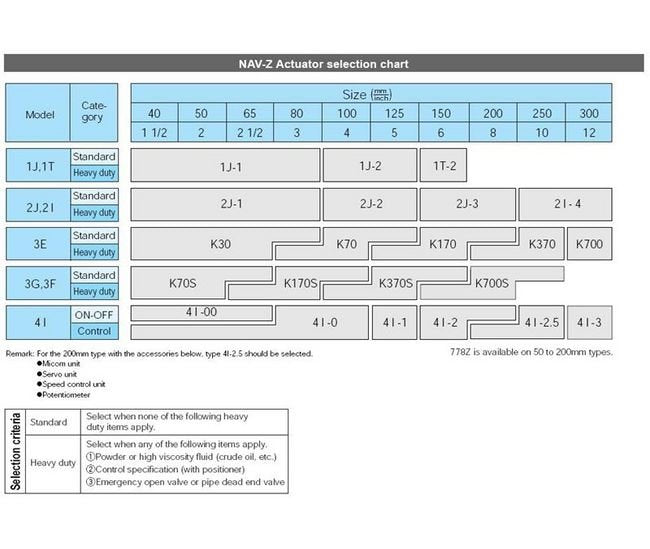

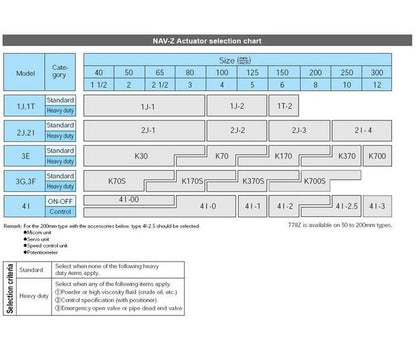

Specifications Actuators
Double Acting Pneumatic Cylinder 3E | Lock Lever | Single Acting Pneumatic Cylinder Type 3F | Single Acting Pneumatic Cylinder Type 3G | Single Phase Electric Motor | Worm Gear
Specifications Actuator Category
Control | Heavy Duty | ON-OFF | Standard
Specifications Actuator Mounting Flange
ISO 5211
Specifications Body Material
Aluminum Diecast Alloy
Specifications Body Shell Test Hydraulic
1.75 MPa
Specifications Column Material
Engineering Plastic
Specifications Cylinder Type
K30 | K70S
Specifications Design Standard
JISB2032
Specifications Direction Of Cylinder Motor
Perpendicular | Standard
Specifications Disc Material
Coated | Stainless Steel Type 316
Specifications Face To Face Dimensions
ISO 5752/JIS B2032
Specifications Seat Material
EPDM | NBR
Specifications Size
050 - 2"
Specifications Stem Material
Stainless Steel Type 420J2
