New Holland Centrifugal Dryers - Industrial Grade 1HP Electric & Steam Units

Name: New Holland Centrifugal Dryers - Industrial Grade 1HP Electric & Steam Units
Brand: Metafin Supply Company
SKU: CEN-b210c6
Price: 2799.99 USD
Availability: OutOfStock

SKU:CEN-b210c6

High-capacity centrifugal dryers with 1HP motor, reversible control, and U.L. recognized construction. Ideal for industrial use.

$2,799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

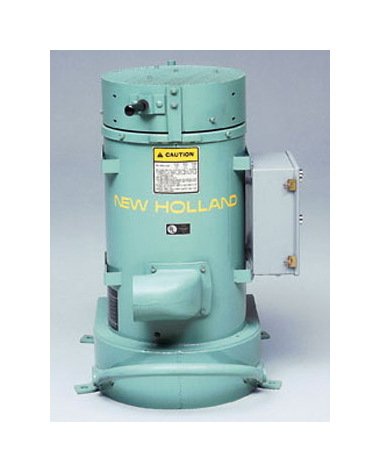

The New Holland Centrifugal Dryers are meticulously engineered to meet the demanding needs of industrial settings. Featuring a powerful 1 hp motor, these dryers offer a generous capacity of 75 lbs and a robust construction with arc-welded steel plate. With an operating speed of 825 rpm and versatile electrical system options, including 208 VAC to 575 VAC, these dryers provide efficient drying performance. Equipped with U.L. recognition and meeting N.E.C. and J.I.C. specifications, they ensure safety and compliance in any institutional or government facility. The reversible control and 2 V-belt drive enhance convenience and functionality, making these dryers a reliable choice for commercial applications.

Product Specifications

Note Note

NOTE: Only one of the options (Soft Start) or (Variable Speed Control) can be ordered at onetime.

Options Soft Start

208/230V Control Package | 380V Control Package - N/A | 460/575V Control Package

Options Temperature Control

(Electric Heat Units Only)

Options Timer

For Standard Control | For Variable Speed Control

Options Variable Speed Control

208/230V 1 HP | 380/460V 1 HP | 575V 1 HP - N/A

Specifications Amperage

Starting and operating amperage varies with voltage selected

Specifications Basket Size

12 x 12 in

Specifications Bearings

2, tapered roller

Specifications Capacity

75 lbs

Specifications Construction

Arc-welded steel Plate

Specifications Drive

2 V-belts

Specifications Electrical System

208 VAC at 60 Hz | 230 VAC at 60 Hz | 380 VAC at 50 Hz | 460 VAC at 60 Hz | 575 VAC at 60 Hz

Specifications Floor Space Required

24 x 37 in

Specifications Grease Fittings

Exposed

Specifications Heating Unit

Electric | Steam

Specifications Meets Jic Specifications

Yes

Specifications Meets Nec Specifications

Yes

Specifications Motor Size

1 hp

Specifications Operating Speed

825 rpm

Specifications Overall Height

36.5 in

Specifications Phase

Three

Specifications Reversible Control

Yes

Specifications Ul Recognized

Yes

Specifications Weight

400 lbs

Specifications Work Height

30 1/2 in
