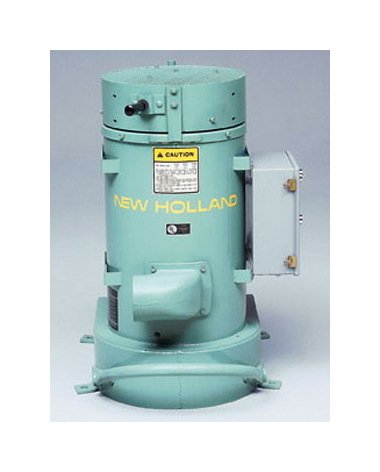

New Holland Chipwringer Centrifugal Dryer
New Holland Chipwringer Centrifugal Dryer
SKU:CEN-962c9f
Efficiently remove fluids with the New Holland Chipwringer Centrifugal Dryer. Arc-welded steel construction, 75 lbs capacity, and 1 hp motor for industrial use.
Regular price
$5,499.99
Regular price
Sale price
$5,499.99
Unit price
per
Initiate Order
New Holland Chipwringer Centrifugal Dryer
$5,499.99
Quantity: 1
Claim Your Seller Account
New Holland Chipwringer Centrifugal Dryer
$5,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The New Holland Chipwringer Centrifugal Dryer efficiently removes fluids from chips, featuring a 12 x 12-inch basket, 75 lbs capacity, 1 hp motor, and reversible control. Constructed with arc-welded steel plate, it meets NEC and JIC specifications, UL recognized, and offers various voltage options. Ideal for industrial use, this dryer ensures optimal fluid separation, maximizing operational efficiency.
Product Specifications
Note Note
NOTE: Only one of the options (Soft Start) or (Variable Speed Control) can be ordered at onetime.
Specifications Amperage
Starting and operating amperage varies with voltage selected
Specifications Basket Size
12 x 12 in
Specifications Bearings
2, tapered roller
Specifications Capacity
75 lbs
Specifications Construction
Arc-welded steel Plate
Specifications Drive
2 V-belts
Specifications Electrical System
208 VAC at 60 Hz | 230 VAC at 60 Hz | 380 VAC at 50 Hz | 460 VAC at 60 Hz | 575 VAC at 60 Hz
Specifications Floor Space Required
24 x 37 in
Specifications Grease Fittings
Exposed
Specifications Heating Unit
No Heat
Specifications Meets Jic Specifications
Yes
Specifications Meets Nec Specifications
Yes
Specifications Motor Size
1 hp
Specifications Operating Speed
825 rpm
Specifications Overall Height
36.5 in
Specifications Phase
Three
Specifications Reversible Control
Yes
Specifications Ul Recognized
Yes
Specifications Weight
400 lbs
Specifications Work Height
30 1/2 in
