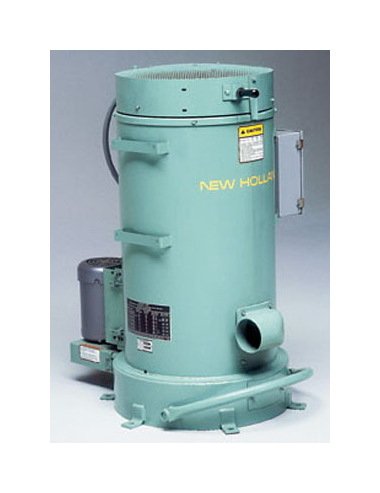

New Holland Chipwringer Centrifugal Dryers
New Holland Chipwringer Centrifugal Dryers
SKU:CEN-f8f416
Efficiently spin fluids off chips with the New Holland Chipwringer Centrifugal Dryers. Durable arc-welded steel construction, 250 lbs capacity, and 3 hp motor.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
New Holland Chipwringer Centrifugal Dryers
$7,999.99
Quantity: 1
Claim Your Seller Account
New Holland Chipwringer Centrifugal Dryers
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The New Holland Chipwringer Centrifugal Dryers are designed to efficiently spin fluids off chips, offering a superior drying solution for industrial applications. With a robust construction of arc-welded steel plate, this dryer ensures durability and longevity. Featuring a 250 lbs capacity and a reversible control system, it operates at 625 rpm with a 3 hp motor. Measuring 46.5 inches in overall height and requiring a floor space of 31 x 40 inches, this dryer is equipped with a 2 V-belt drive system and meets N.E.C. and U.L. recognition standards.
Product Specifications
Note Note
NOTE: Only one of the options (Soft Start) or (Variable Speed Control) can be ordered at onetime.
Specifications Amperage
Starting and operating amperage varies with voltage selected
Specifications Basket Size
18 x 24 in
Specifications Bearings
2, tapered roller
Specifications Capacity
250 lbs
Specifications Construction
Arc-welded steel Plate
Specifications Drive
2 V-belts
Specifications Electrical System
208 VAC at 60 Hz | 230 VAC at 60 Hz | 380 VAC at 50 Hz | 460 VAC at 60 Hz | 575 VAC at 60 Hz
Specifications Floor Space Required
31 x 40 in
Specifications Grease Fittings
Exposed
Specifications Heating Unit
No Heat
Specifications Meets Jic Specifications
Yes
Specifications Meets Nec Specifications
Yes
Specifications Motor Size
3 hp
Specifications Operating Speed
625 rpm
Specifications Overall Height
46.5 in
Specifications Phase
Three
Specifications Reversible Control
Yes
Specifications Ul Recognized
Yes
Specifications Weight
690 lbs
Specifications Work Height
43 in
