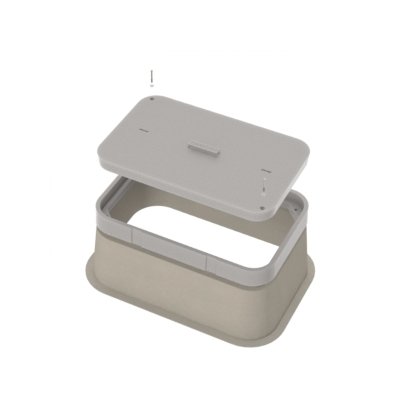

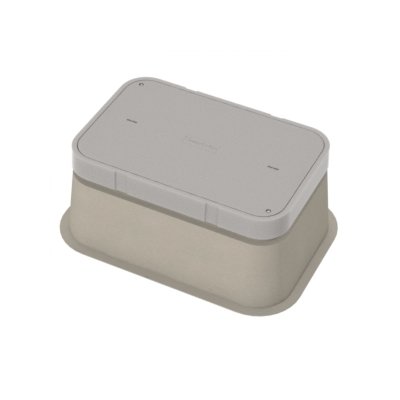

Newbasis 25-inch Fiberglass Concrete Assembly
Newbasis 25-inch Fiberglass Concrete Assembly
SKU:HAN-9ef87e
Durable 25-inch Fiberglass Concrete Assembly with ASTM-compliant strength and easy installation features.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Newbasis 25-inch Fiberglass Concrete Assembly
$899.99
Quantity: 1
Claim Your Seller Account
Newbasis 25-inch Fiberglass Concrete Assembly
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Newbasis 25-inch Fiberglass Concrete Assembly offers exceptional durability and strength for various applications. Constructed from high-quality fiberglass concrete material, this assembly meets stringent ASTM standards for compressive and flexural strength, making it ideal for heavy-duty use. With features like skid-resistant cover, integral drain holes, and a drop-in nameplate, this assembly provides reliable performance and easy installation.
Product Specifications
Available Options
Penta Bolts, Telephone EMS, Power EMS, Splice Tray, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
26 in
Dimensional Attributes Inside Clearance Diameter Bottom
34 13/16 in
Dimensional Attributes Inside Clearance Diameter Top
34 13/16 in
Dimensional Attributes Inside Depth
25 in
Features
USDA/RUS ApprovedDrop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D-543 and ASTM D-570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticWaterIrrigation Control ValveBroadbandTrafficCATVTraffic SignalCommunications
Specifications Assembly Weight
414 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
203 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength Per American Society For Tes
87 MPa
Specifications Cover Weight
211 lb
Specifications Diameter
40 in
Specifications Fiber Reinforced Polymers Frp Compressive Strengt
134 MPa
Specifications Fiber Reinforced Polymers Frp Flexural Strength P
116 MPa
Specifications Flexural Strength Per American Society For Testin
20 MPa
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 -''20K/T15''
Specifications Loaded Pallet Weight
900 lb
Specifications Material
Fiberglass Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
2
Specifications Side
Tapered
Specifications Type
Fiberglass Concrete Assemblies
