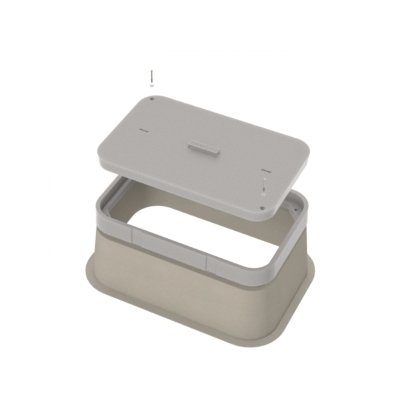

• Newbasis PCX™ 48 in. Fiberglass Concrete Assembly - Image 1

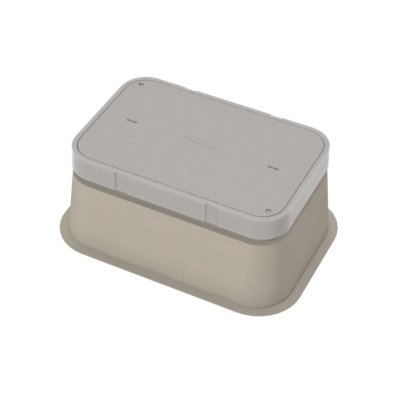

  • Newbasis PCX™ 48 in. Fiberglass Concrete Assembly - Image 2
1 2
Colonial Teltek →

Newbasis PCX™ 48 in. Fiberglass Concrete Assembly

Newbasis PCX™ 48 in. Fiberglass Concrete Assembly

HAN-157b19

Durable Newbasis PCX™ Fiberglass Concrete Assembly with high strength materials, ASTM compliance, and customizable nameplates.

$899.99
$899.99
Sale

Initiate Order

Newbasis PCX™ 48 in. Fiberglass Concrete Assembly

Newbasis PCX™ 48 in. Fiberglass Concrete Assembly

$899.99

Quantity: 1

Claim Your Seller Account

Newbasis PCX™ 48 in. Fiberglass Concrete Assembly

Newbasis PCX™ 48 in. Fiberglass Concrete Assembly

$899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Experience superior durability and reliability with the Newbasis PCX™ Fiberglass Concrete Assembly. This assembly features advanced composite materials tested to meet ASTM standards, ensuring high strength, non-conductivity, UV resistance, and chemical/moisture impermeability. With a compressive strength of 11500 psi and flexural strength of 4000 psi, it complies with WUC 3.6 and ANSI/SCTE 77 -''T15/20K'' standards. The assembly also includes customizable nameplates for easy identification across various utility sectors.

Product Specifications

Available Options
Penta Bolts, Telephone EMS, Power EMS, 2 Racks, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
48 in
Dimensional Attributes Inside Depth
44 5/8 in
Dimensional Attributes Inside Length
38 in | 43 7/8 in
Dimensional Attributes Inside Width For 38 In Length
38 in
Dimensional Attributes Inside Width For 43 78 In Length
43 7/8 in
Dimensional Attributes Length
48 in
Dimensional Attributes Width
48 in
Features
USDA/RUS ApprovedDrop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D-543 and ASTM D-570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticStreet LightingTrafficCATVCommunications
Specifications Assembly Weight
636 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
271 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
365 lb
Specifications Fiber Reinforced Polymers Frp Compressive Strengt
19440 psi
Specifications Fiber Reinforced Polymers Frp Flexural Strength P
16,830 psi
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 -''T15/20K''
Specifications Loaded Pallet Weight
1317 lb
Specifications Material
Fiberglass Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
2
Specifications Side
Straight
Specifications Type
Fiberglass Concrete Assemblies
