Newbasis PCX™ Polymer Concrete Assembly - 40 1/4 in. Opening Length
Newbasis PCX™ Polymer Concrete Assembly - 40 1/4 in. Opening Length
SKU:HAN-619194
High-strength Newbasis PCX™ Polymer Concrete Assembly with stainless steel bolts, skid-resistant cover, and custom options for institutional needs.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Newbasis PCX™ Polymer Concrete Assembly - 40 1/4 in. Opening Length
$1,899.99
Quantity: 1
Claim Your Seller Account
Newbasis PCX™ Polymer Concrete Assembly - 40 1/4 in. Opening Length
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

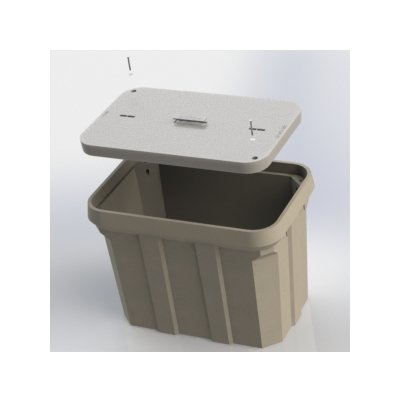

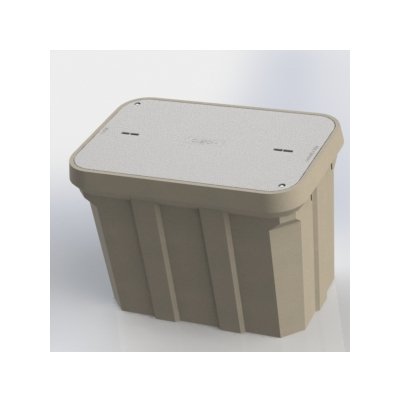

The Newbasis PCX™ Polymer Concrete Assembly features a straight-sided design, open bottom style, and high-strength construction suitable for institutional and government applications. Compliant with WUC 3.6, ANSI/SCTE 77 standards, this assembly incorporates stainless steel bolts, a skid-resistant cover, and a cast-in floating nut box. Built to withstand incidental traffic, this assembly is USDA/RUS approved, UV-resistant, and impervious to chemicals and moisture. With options for custom nameplates, knockouts, and tier 22 load rating, this assembly offers versatility for various infrastructure needs.
Product Specifications
Available Options
Tier 22 Load Rating, Penta Bolts, Knockouts, Terminator, Racks, Floor, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
48 in
Dimensional Attributes Inside Depth
43 7/8 in
Dimensional Attributes Inside Length
40 1/4 in | 43 7/8 in
Dimensional Attributes Inside Width For 40 14 In Length
40 1/4 in
Dimensional Attributes Inside Width For 43 78 In Length
45 in
Dimensional Attributes Length
48 in
Dimensional Attributes Width
48 in
Features
USDA/RUS ApprovedDrop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D 543 and ASTM D 570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticStreet LightingTrafficCATVCommunications
Note
Standard shipping includes van delivery of pallet quantities to the lower 48 states. Partial pallet quantities and flat bed shipping available at an additional cost.
Specifications Assembly Weight
1318 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
952 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
366 lb
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 - ''T15/20K"
Specifications Loaded Pallet Weight
2686 lb
Specifications Material
Polymer Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
2
Specifications Side
Straight
Specifications Style
Open Bottom
Specifications Type
Polymer Concrete Assembly
