Newbasis PCX™ Polymer Concrete Assembly - 54.5" Opening Length
Newbasis PCX™ Polymer Concrete Assembly - 54.5" Opening Length
SKU:HAN-2cc8d6
Durable Newbasis PCX™ Polymer Concrete Assembly for institutional and consumer use. Compliant with industry standards, skid-resistant cover, easy installation.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Newbasis PCX™ Polymer Concrete Assembly - 54.5" Opening Length
$1,899.99
Quantity: 1
Claim Your Seller Account
Newbasis PCX™ Polymer Concrete Assembly - 54.5" Opening Length
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

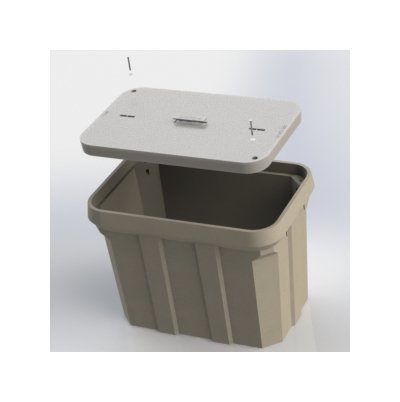

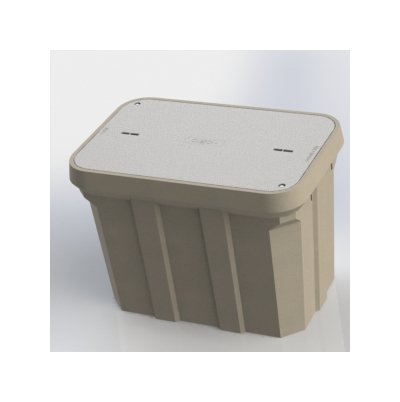

The Newbasis PCX™ Polymer Concrete Assembly is a durable and reliable solution designed for both consumer and institutional applications. Measuring 54.5 inches in opening length, this assembly features straight sides, an open bottom style, and is compliant with WUC 3.6, ANSI/SCTE 77 standards. Constructed with advanced composite material, it offers a high compressive strength of 11500 psi and flexural strength of 4000 psi. The assembly includes a skid-resistant cover, USDA/RUS approval, and a cast-in floating nut box with integral drain holes for added convenience and functionality. With customization options available and easy installation, this assembly is a versatile choice for various utility needs.
Product Specifications
Available Options
Tier 22 Load Rating, Penta Bolts, Telephone EMS, Power EMS, 2 Piece Cover, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
36 in
Dimensional Attributes Inside Depth
36 1/8 in
Dimensional Attributes Inside Length
54 1/2 in | 57 1/4 in
Dimensional Attributes Inside Width For 54 12 In Length
33 3/8 in
Dimensional Attributes Inside Width For 57 14 In Length
33 in
Dimensional Attributes Length
60 in
Dimensional Attributes Width
36 in
Features
USDA/RUS ApprovedDrop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D 543 and ASTM D 570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticStreet LightingTrafficCATVCommunications
Note
Standard shipping includes van delivery of pallet quantities to the lower 48 states. Partial pallet quantities and flat bed shipping available at an additional cost.
Specifications Assembly Weight
1018 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
600 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
417 lb
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 - ''T15/20K"
Specifications Loaded Pallet Weight
2106 lb
Specifications Material
Polymer Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
2
Specifications Side
Straight
Specifications Style
Open Bottom
Specifications Type
Polymer Concrete Assembly
