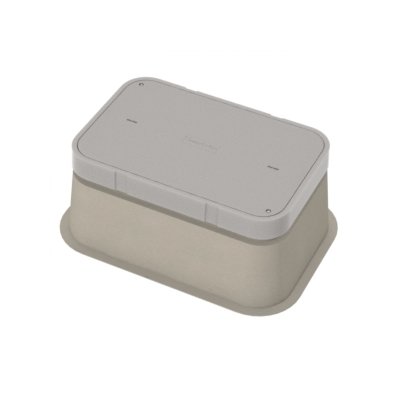

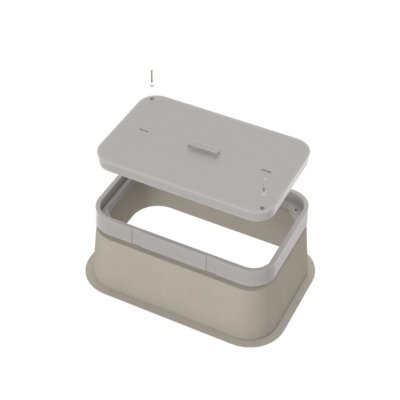

Newbasis PCX Fiberglass Concrete Assembly With Stainless Steel Hex Bolts - 32 7/8 in. Inside Depth
Newbasis PCX Fiberglass Concrete Assembly With Stainless Steel Hex Bolts - 32 7/8 in. Inside Depth
SKU:HAN-39810e
Advanced composite fiberglass concrete assembly with stainless steel bolts. USDA/RUS approved, skid-resistant cover, compliant with WUC 3.6 and ANSI standards.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Newbasis PCX Fiberglass Concrete Assembly With Stainless Steel Hex Bolts - 32 7/8 in. Inside Depth
$1,499.99
Quantity: 1
Claim Your Seller Account
Newbasis PCX Fiberglass Concrete Assembly With Stainless Steel Hex Bolts - 32 7/8 in. Inside Depth
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Newbasis PCX Fiberglass Concrete Assembly features advanced composite construction, offering exceptional strength-to-weight ratio, non-conductive properties, and resistance to UV, chemicals, and moisture. Compliant with industry standards including WUC 3.6 and ANSI/SCTE 77 - ''T15/20K.'' This assembly is USDA/RUS approved, includes a drop-in nameplate, and comes with a skid-resistant cover for added safety. Ideal for institutional and government applications requiring durability, reliability, and high-performance materials.
Product Specifications
Available Options
Penta Bolts, Telephone EMS, Power EMS, 2 Racks, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
36 in
Dimensional Attributes Inside Depth
32 7/8 in
Dimensional Attributes Inside Length
38 7/8 in | 43 7/8 in
Dimensional Attributes Inside Width For 38 78 In Length
38 7/8 in
Dimensional Attributes Inside Width For 43 78 In Length
43 7/8 in
Dimensional Attributes Length
48 in
Dimensional Attributes Width
48 in
Features
USDA/RUS ApprovedDrop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D-543 and ASTM D-570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticStreet LightingTrafficCATVCommunications
Specifications Assembly Weight
605 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
239 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
365 lb
Specifications Fiber Reinforced Polymers Frp Compressive Strengt
19440 psi
Specifications Fiber Reinforced Polymers Frp Flexural Strength P
16,830 psi
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 -''T15/20K''
Specifications Loaded Pallet Weight
1254 lb
Specifications Material
Fiberglass Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
2
Specifications Side
Straight
Specifications Type
Fiberglass Concrete Assemblies
