Newton 1020 N Electric Cylinder
Newton 1020 N Electric Cylinder
SKU:ELE-2540cd
Experience precision and reliability with the Newton 1020 N Constant Force Electric Cylinder. Ideal for high-performance linear motion control.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Newton 1020 N Electric Cylinder
$1,499.99
Quantity: 1
Claim Your Seller Account
Newton 1020 N Electric Cylinder
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

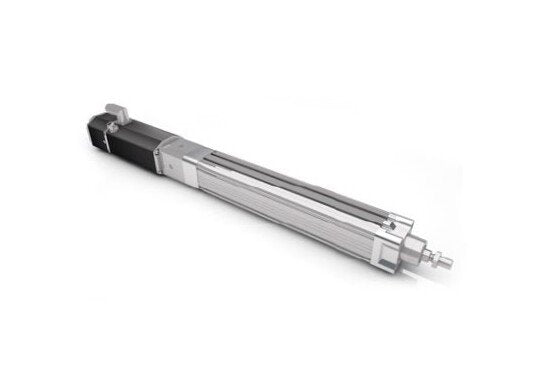

The Newton 1020 N Constant Force Electric Cylinder is a cutting-edge solution for precise linear motion control. With strokes ranging up to 600 mm, brushless DC servomotors, and a twist-protected thrust rod, this electric cylinder offers superior performance and durability. It features a maximum traverse speed of 300 mm/s, peak force of 2375 N, and a repeatability of ±0.01 mm. With industry standards such as European Conformity (CE) and Underwriters Laboratories (UL) certifications, this electric cylinder ensures reliability and compliance with relevant quality benchmarks. Ideal for applications requiring high force, dynamic response, and precise positioning, this cylinder is a versatile alternative to pneumatic cylinders.
Product Specifications
Additional Information Additional Information
Compact and space savingEasy configuration of max. 14 positions (PI motor)Several BUS interfaces availablePLG 52 on request
Features Features
IO modeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeHigh efficiencyLow noiseSelf-locking ratios availableHigh forceHigh dynamicDigital inputsDigital outputsAnalog inputsOscilloscope software availableCondition monitoringProgrammableVibration resistance
Note Note
Not applicable for motions on mechanical stop.
Technical Specs Brands
Dunkermotoren
Technical Specs Constant Force
1020 N
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Acceleration
6 mm/s²
Technical Specs Maximum Traverse Speed
300 mm/s
Technical Specs Motor Type
BG 75x75
Technical Specs Nominal Current
12.7 A
Technical Specs Nominal Direct Current Dc Voltage
40 to 48 V
Technical Specs Peak Current 2 Second S
50 A
Technical Specs Peak Force
2375 N
Technical Specs Protection Class
Ingress Protection (IP54S)
Technical Specs Repeatability
0.01 mm
Technical Specs Spindle Pitch
5 mm
Technical Specs Spindle Version
BS (Ball Screw)
Technical Specs Stroke Length
100 mm | 200 mm | 300 mm | 400 mm | 500 mm | 600 mm
