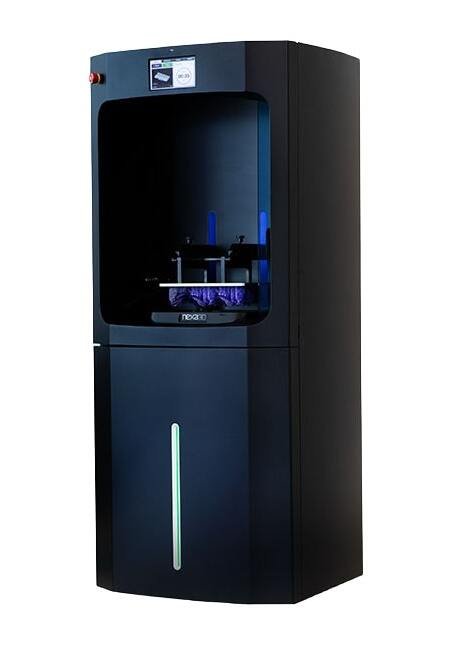

Nexa3D NXD 200 Ultrafast Dental 3D Printer
Nexa3D NXD 200 Ultrafast Dental 3D Printer
SKU:PRO-98a305
Experience the ultrafast Nexa3D NXD 200 Dental 3D Printer - Superior speed, accuracy, and workflow validation for large-scale dental production needs.
Regular price
$26,999.00
Regular price
Sale price
$26,999.00
Unit price
per
Initiate Order
Nexa3D NXD 200 Ultrafast Dental 3D Printer
$26,999.00
Quantity: 1
Claim Your Seller Account
Nexa3D NXD 200 Ultrafast Dental 3D Printer
$26,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience the cutting-edge Nexa3D NXD 200 Ultrafast Dental 3D Printer, powered by next-generation LSPc technology. This complete 3D printing solution is engineered for large-scale dental production needs, offering superior speed, accuracy, and workflow validation. With validated workflows and a range of high-impact functional materials, including KeyGuide, KeyModel Ultra, KeySplint Soft, and KeyTray, this printer ensures isotropic parts and higher throughput, resulting in cost-effective production for any dental application. Enjoy single-click operations, smart integrated workflow software, and predictive service for enhanced productivity and reliability.
Product Specifications
Additional Information Additional Information
Disruptive, modular and scalable Light Engine technologyEdge-to-edge uniformity and accuracyHigh power and light transmissionReal-time monitoring, optimizing and diagnosticsPrint at a speed of up to a model a minuteSpacious Build Platform 275 x 155 x 200mm405 nm and 4K ResolutionLarge Build Plate Allows for Printing at a Speed of a Model a MinuteThe NXE200 features 8.5L of build volume (measuring 10.8 in x 6.1 in x 7.8 in / 275 mm x 155 mm x 200 mm), an intelligent print optimization software, 4K resolution, and Nexa3D®âs revolutionary patented LSPc technology. Thanks to its cutting-edge technology the NXD200 provides isotropic printed parts, higher throughput, and lower cost per part making it the perfect 3D printing solution for any dental application.Consistency with Every BuildAccuracy, uniformity and repeatability from edge to edge on the build platform.Lab Ready + Modular DesignIn addition to our highly reliable LSPc technology, the NXD 200 is crafted to be completely modular in design for easily interchangeable parts and technology upgrades eliminating hardware obsolescence.Smart Integrated Workflow Software + Predictive ServiceNexa3D®âs internally developed intelligent software connects our hardware and materials together into a powerful, user friendly system while providing a new era of predictive and prescriptive service. Itâs as simple as pressing CRTL+P.Our Speed + Our Reliability = Your Productivity
Client Hardware Recommendation Client Hardware Recommendation
3 GHz multiple core processor with 16+ GB RAMNVIDEA GTX 1060 or AMD Radeon RX 480 or better graphics with 4+ GB RAM3 GB available HDD space, additional 10GB for files / cache
Dimensions 3d Printer Crated Depth D
990 mm | 39 in
Dimensions 3d Printer Crated Height H
1905 mm | 75 in
Dimensions 3d Printer Crated Width W
990 mm | 39 in
Dimensions 3d Printer Uncrated Depth D
710 mm | 28 in
Dimensions 3d Printer Uncrated Height H
1675 mm | 66 in
Dimensions 3d Printer Uncrated Width W
710 mm | 28 in
Features Features
Single click - rotate and push operationValidated resin presets for consistent part curing results30-60C heating capacity with 1C increments6 dual wavelength 365 + 405 nm LEDsTotal input power of 360W ensures quick and efficient cycles
Note Note
Not all products and materials are available in all countries - please consult your local sales representative for availability
Operating Environment Air Temperature
20 to 25 ºC | 60 to 80 ºF
Operating Environment Alternating Current Ac Voltage North Ameri
100 to 120 V
Operating Environment Current European Union Eu
4 A
Operating Environment Current North America Na
8 A
Operating Environment Frequency North America Na
50 Hz | 60 Hz
Operating Environment Industry Standard European Union Eu
CEE 7/7
Operating Environment Industry Standard North America Na
National Electrical Manufacturers Association (NEMA 15-5R)
Operating Environment Phase
Single
Operating Environment Relative Humidity Rh
Below 70 %
Performance Dental Resins For Serious Production Performance Den

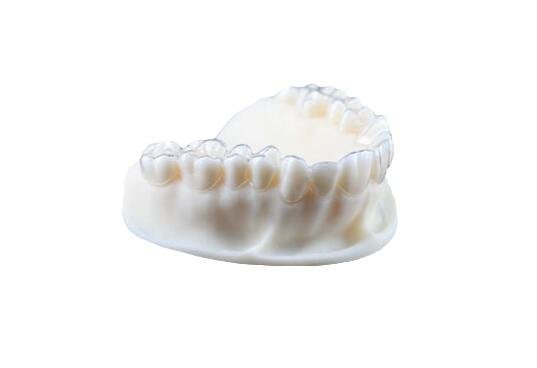

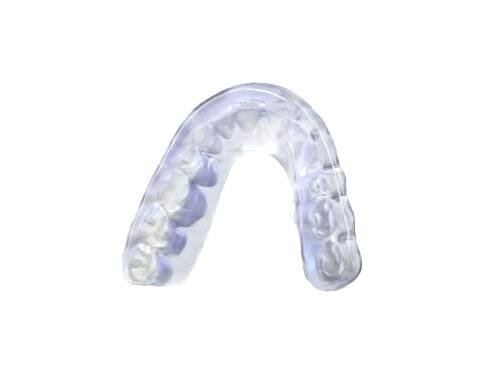

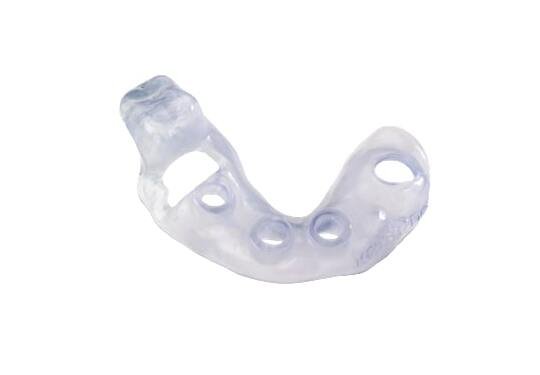

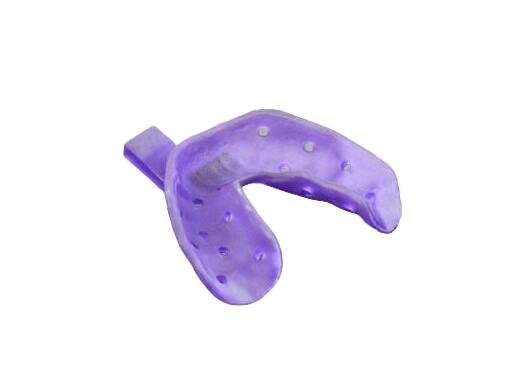

Nexa3D® offers an expanding range of high impact functional materials for the NXE 200 3D printer that are tailored to unleash performance and productivity by taking 3D printing from dial-up internet to broadband speed, making our solutions ideal for serious production and same day prototypes.Resin Name - KeyModel UltraDescription - Model material for thermoforming and removal die and model application.Resin Name - KeySplint SoftDescription - Splint material for splints, night guards and bleaching trays.Resin Name - KeyGuideDescription - Guide material for surgical guides.Resin Name - KeyTrayDescription - Tray resin for creating customized impression trays.
Post Processing Post Processing
Ships with basic part finishing tools accessory kit.Max build requires wash basin & cure chamber with 300 x 180 x 480 mm (12 x 7 x 19 in) capacityRequires UV curing unit capable of > 2mW/cm² and 60 ºC (ideal 20mW/cm² and up to 120 ºC)
Specifications Alternating Current Ac Voltage European Union Eu
200 to 240 V
Specifications Alternating Current Ac Voltage United States Us
100 to 120 V
Specifications Build Volume Xyz
275 x 155 x 200 mm | 10.8 x 6.1 x 7.8 in
Specifications Client Operating System
Windows 10, 64 bit
Specifications Connectivity
GigaBit Ethernet RJ-45 & WiFi Interface
Specifications External Depth D
20 in | 50.80 cm
Specifications External Height H
32 in | 81.28 cm
Specifications External Width W
21 in | 53.34 cm
Specifications Frequency European Union Eu
50 Hz
Specifications Frequency United States Us
60 Hz
Specifications Input Data File Formats Supported
.3mf | .stl
Specifications Internal Depth D
10.75 in | 27.30 cm
Specifications Internal Height H
25.75 in | 65.40 cm
Specifications Internal Width W
15.50 in | 39.37 cm
Specifications Materialise Magicsprint For Nexa3d Software
Full featured toolset including auto orientation and nesting, auto support generation, mesh repair wizard, and part editing
Specifications Packaging Material
Jerry Can
Specifications Packaging Material Weight
5 kg
Specifications Ultraviolet Uv Curable Plastics Build Materials
KeyGuide | KeyModel Ultra | KeySplint Soft | KeyTray
