Nexa3D NXE 400 Professional 3D Printer
Nexa3D NXE 400 Professional 3D Printer
SKU:PRO-2cce0f
Revolutionize your production with the Nexa3D NXE 400 Professional 3D Printer, delivering superior productivity and precision for series production and on-demand parts.
Regular price
$24,999.00
Regular price
Sale price
$24,999.00
Unit price
per
Initiate Order
Nexa3D NXE 400 Professional 3D Printer
$24,999.00
Quantity: 1
Claim Your Seller Account
Nexa3D NXE 400 Professional 3D Printer
$24,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

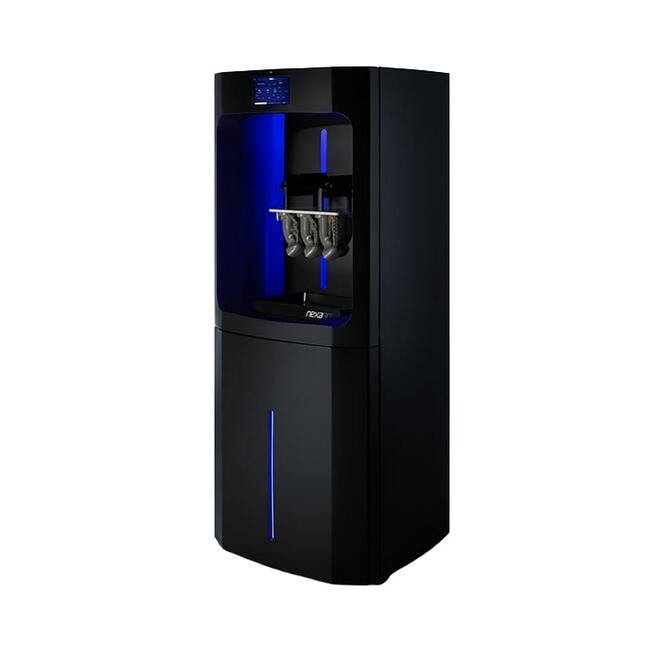

Experience unmatched productivity and precision with the Nexa3D NXE 400 3D Printer. Featuring a groundbreaking 16L build volume, advanced LSPc technology, and validated post-processing tools, this printer is engineered for series production and on-demand parts. With high-resolution printing and a modular design, the NXE 400 maximizes part quality and yield, offering a scalable manufacturing solution with predictive service capabilities.
Product Specifications
Client Hardware Recommendation Client Hardware Recommendation
3 GHz multiple core processor with 16+ GB RAMNVIDEA GTX 1060 or AMD Radeon RX 480 or better graphics with 4+ GB RAM3 GB available HDD space, additional 10GB for files / cache
Dimensions 3d Printer Crated Depth D
990 mm | 39 in
Dimensions 3d Printer Crated Height H
1905 mm | 75 in
Dimensions 3d Printer Crated Width W
990 mm | 39 in
Dimensions 3d Printer Uncrated Depth D
710 mm | 28 in
Dimensions 3d Printer Uncrated Height H
1675 mm | 66 in
Dimensions 3d Printer Uncrated Width W
710 mm | 28 in
Features Features
Single click - rotate and push operationValidated resin pre-setts for consistent part curing results30-60C heating capacity with 1C increments6 dual wavelength 365 + 405 nm LEDsTotal input power of 360W ensures quick and efficient cycles
Note Note
Not all products and materials are available in all countries - please consult your local sales representative for availability
Operating Environment Air Temperature
20 to 25 ºC | 60 to 80 ºF
Operating Environment Alternating Current Ac Voltage North Ameri
100 to 120 V
Operating Environment Current European Union Eu
4 A
Operating Environment Current North America Na
8 A
Operating Environment Frequency North America Na
50 Hz | 60 Hz
Operating Environment Industry Standard European Union Eu
CEE 7/7
Operating Environment Industry Standard North America Na
National Electrical Manufacturers Association (NEMA 15-5R)
Operating Environment Phase
Single
Operating Environment Relative Humidity Rh
Below 70 %
Performance Photoplastics For Series Production Performance Phot
Nexa3D® offers an expanding range of high impact functional materials for the NXE 400 3D printer that are tailored to unleash performance and productivity by taking 3D printing from dial-up internet to broadband speed, making our solutions ideal for series production and same day prototypes.Resin Name - xGPP-TranslucentDescription - Fast, medium-viscous resin suitable for translucent, rigid, multipurpose high performance parts. Parts produced with this resin show no water uptake and low shrinkage. xGPP Translucent is great for demo parts, large parts, performance prototypes, fluid flow models, electrical casings, functional enduse parts and snap parts.Resin Name - xGPP-GrayDescription - Tailored to provide great surface finish and incredibly true to design details, the xGPP-Gray is ideal for texture reach models. With matt finish and high accuracy this resin will provide great visualization of fine structures and features. Ideal for visual models and rapid prototype parts.Resin Name - xCE-WhiteDescription - High performance polymer for producing end-use plastic parts and injection molding tools in minutes. Nexa3D®'s new material is the fastest single cure polymer boasting higher flexural strength compared to those typically achieved only in dual cure cyanate ester resins. xCEWhite has excellent isotropic properties and exhibit long-term environmental stability.Resin Name - xCE-BlackDescription - High performance polymer for producing end-use plastic parts and injection molding tools in minutes. Nexa3D®'s new material is a single cure polymer that delivers higher flexural strength compared to those typically achieved only in dual cure cyanate ester resins. xCE-Black has excellent isotropic properties and exhibit long-term environmental stability.Resin Name - 3843 xABS blackDescription - High performance, high modulus material that boasts excellent flexural and tensile physical properties with a relatively high degree of elongation. 3843-ABS-Black is a low-shrinkage and high toughness material, enabling it to print accurately and function in a wide variety of applications including robotics and automation machinery, vehicle components, and end-use parts.Resin Name - xMED412Description - xMED412 is polypropylene-like material that is ideal for manufacturing a variety of biocompatible, medical and wearable devices. xMED412 is based on Henkel's Loctite® MED412 material and is covered by all of its associated clearances, tests and certifications.
Post Processing Post Processing

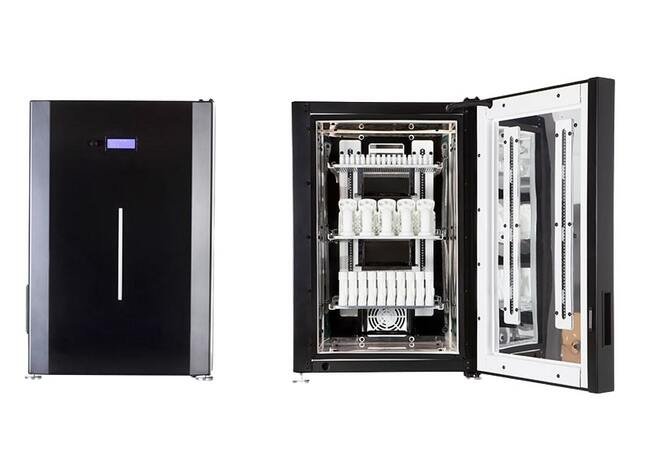

Ships with basic part finishing tools accessory kit.Max build requires wash basin and cure chamber with 300 x 180 x 480 mm (12 x 7 x 19 in) capacityRequires UV curing unit capable of > 2mW/cm² and 60 ºC (ideal 20mW/cm² and up to 120 ºC)
See What The Worlds Fastest Industrial 3d Printer Can Do For You
2.5x Larger Build VolumeThe NXE 400 features more than double the build volume compared to currently available technologies, allowing for much larger parts, higher part throughput, and ultimately lower part cost, all with the higher-resolution pixels (75 μm) and isotropic prints.Manufacturing Ready + Modular DesignIn addition to our highly reliable LSPc technology, the NXE 400 is crafted to be completely modular in design for easily interchangeable parts and technology upgrades eliminating hardware obsolescence.Next-Gen Software + Predictive ServiceNexa3D®'s internally developed intelligent software connects our hardware and materials together into a powerful, user friendly system while providing a new era of predictive and prescriptive service. It's as simple as pressing CRTL+P.Maximize Part Quality and YieldThe NXE 400 is the next scalable manufacturing solution with additional washing and curing units capable of handling even the largest 16L parts on a single tray making the NXE 400 the most advanced printing solution in its class. The washing and curing units are also capable of handling both single large prints and a combination of smaller parts with multiple trays to create finished parts in a matter of minutes in what would normally take hours with today's available technologies reducing labor costs and post processing times.Smart and ConnectedOur software tools, include validated workflows that are coded into our digital thread and include intuitively guided print prep and execution system. Machine learning and vision provide adaptive print process and real-time monitoring for optimal yield and quality. Our validated workflows include material and geometry specific prescribed wash and cure cycles.
Specifications Alternating Current Ac Voltage European Union Eu
200 to 240 V
Specifications Alternating Current Ac Voltage United States Us
100 to 120 V
Specifications Build Volume Xyz
275 x 155 x 400 mm | 10.8 x 6.1 x 15.7 in
Specifications Client Operating System
Windows 10, 64 bit
Specifications Connectivity
GigaBit Ethernet RJ-45 and WiFi Interface
Specifications External Depth D
20 in | 50.80 cm
Specifications External Height H
32 in | 81.28 cm
Specifications External Width W
21 in | 53.34 cm
Specifications Frequency European Union Eu
50 Hz
Specifications Frequency United States Us
60 Hz
Specifications Input Data File Formats Supported
.3mf | .stl
Specifications Internal Depth D
10.75 in | 27.30 cm
Specifications Internal Height H
25.75 in | 65.40 cm
Specifications Internal Width W
15.50 in | 39.37 cm
Specifications Materialise Magicsprint For Nexa3d Software
Full featured toolset including auto aorientation and nesting, auto support generation, mesh repair wizard, and part editing
Specifications Packaging Material
Jerry Can
Specifications Packaging Material Weight
5 kg
Specifications Ultraviolet Uv Curable Plastics Build Materials
3843-ABS-Black | xABS-HT-Orange | xCAST | xCE-Black | xGPP-Blue | xGPP-Gray | xGPP-Transparent | xMED
