NFPA 4MA Series Air Cylinder Cap with Detachable Eye Mount - 6" and 8" Bore
NFPA 4MA Series Air Cylinder Cap with Detachable Eye Mount - 6" and 8" Bore
SKU:AIR-a162c1
Premium NFPA 4MA Air Cylinder Cap with Detachable Eye Mount - Lightweight, reliable, and RoHS compliant for efficient linear force applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
NFPA 4MA Series Air Cylinder Cap with Detachable Eye Mount - 6" and 8" Bore
$129.99
Quantity: 1
Claim Your Seller Account
NFPA 4MA Series Air Cylinder Cap with Detachable Eye Mount - 6" and 8" Bore
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your pneumatic systems with the NFPA 4MA Series Air Cylinder Cap Detachable Eye Mount, crafted with lightweight aluminum for reliability. This versatile cylinder features removable bronze alloy gland/bearing, flexible bore sizes, multiple mounting styles, and RoHS compliance for easy maintenance and efficient linear force applications. Whether for consumer or institutional needs, this cylinder caters to diverse cylinder requirements with precision and durability.
Ready to Grow Without Cash Flow Constraints?

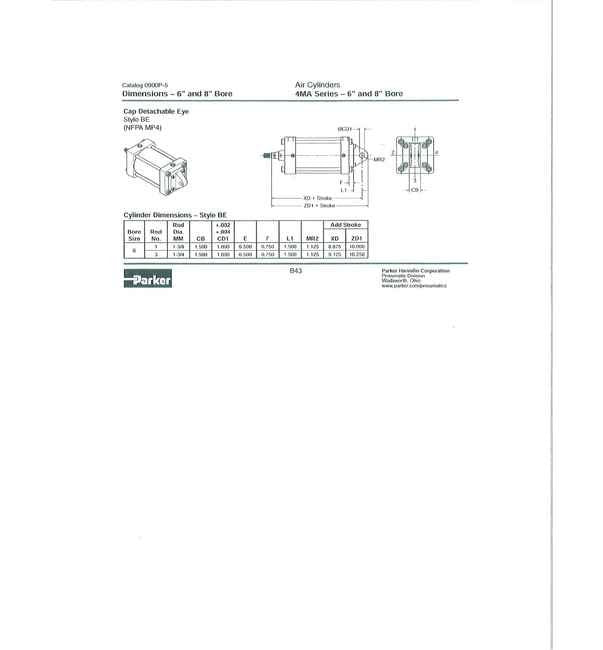

Product Specifications
Specifications Aa
6.900 in
Specifications Add Stroke Xd
8.875 in
Specifications Add Stroke Zd
10.000 in
Specifications Bore Size
6 in
Specifications Cb
1.500 in
Specifications Cd
1.000 in
Specifications E
6.500 in
Specifications Ee Nptf
3/4 in
Specifications F
.7500 in
Specifications L1
1.500 in
Specifications Nfpa
MP4
Specifications Tolerance Cd
+ .002 - .004 in
