NG Series 8:1 Reduction Gearbox with 9 N·m Continuous Torque

Name: NG Series 8:1 Reduction Gearbox with 9 N·m Continuous Torque
Brand: Dunkermotoren
SKU: NGS-f8bea8
Price: 289.99 USD
Availability: OutOfStock

SKU:NGS-f8bea8

NG Series 8:1 Reduction Gearbox - High torque, low space, and durability for diverse applications.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

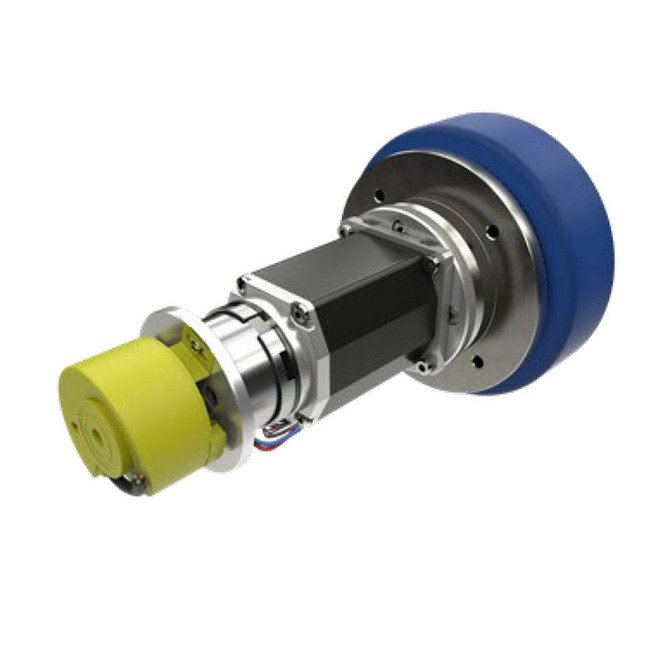

The NG Series 8:1 Reduction Ratio Gearbox delivers exceptional radial load capacity and requires minimal installation space due to its integrated hub design. Manufactured by Dunkermotoren, this gearbox offers high efficiency at 90%, one stage, and a continuous torque of 9 N·m. With a durable and robust build, optional wheel lining in special materials, and protection class IP54, it ensures longevity and reliability in various applications. Experience lifetime lubrication, vibration resistance, and high torque capabilities with this gear motor that meets stringent industry standards.

Product Specifications

Features Features

Lifetime lubricationHigh efficiencyVibration resistanceHigh torqueLonglife version

Technical Specs Acceleration Torque

18 NÂ·m

Technical Specs Axial Load

833 N

Technical Specs Brands

Dunkermotoren

Technical Specs Continuous Torque

9 NÂ·m

Technical Specs Efficiency

90 %

Technical Specs Emergency Stop Torque

27 NÂ·m

Technical Specs Maximum Backlash

40 arc-min

Technical Specs Number Of Stages

Technical Specs Operating Mode

S1 | S8

Technical Specs Product Availability

Standard Product

Technical Specs Protection Class

Ingress Protection (IP54)

Technical Specs Radial Load

2500 N

Technical Specs Reduction Ratio

Technical Specs Series

Technical Specs Weight Of Gearbox

3.8 kg

NG Series 8:1 Reduction Gearbox with 9 N·m Continuous Torque
