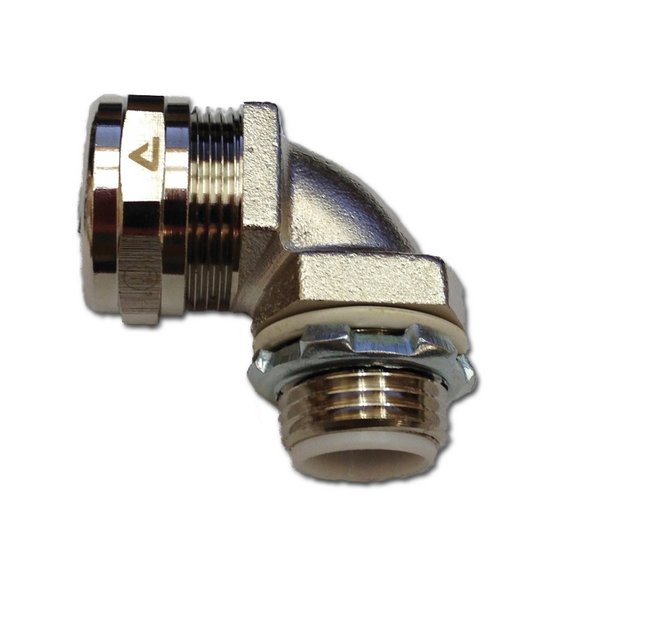

Nickel Plated Brass 90° Compact Fitting NPT 1-1/4 in
Nickel Plated Brass 90° Compact Fitting NPT 1-1/4 in
SKU:FIT-fd33c9
High-quality Nickel Plated Brass 90° Compact Fitting NPT 1-1/4 in with UL, CSA, and RoHS WEEE certifications for secure electrical connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Nickel Plated Brass 90° Compact Fitting NPT 1-1/4 in
$24.99
Quantity: 1
Claim Your Seller Account
Nickel Plated Brass 90° Compact Fitting NPT 1-1/4 in
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nickel Plated Brass 90° Compact Fitting NPT 1-1/4 in is a durable and reliable solution for electrical connections. Constructed from high-quality brass, this fitting includes a counter nut, clamping ring, ferrule, and body for secure installations. With features like a sealing ring, galvanized steel lock nut, and Ingress Protection (IP) 66/67 rating, it ensures a tight and protected connection. Certified with UL, CSA, and RoHS WEEE compliance, this fitting meets industry standards for safety and quality assurance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Connector Type
90°
Specifications Core Material
Brass

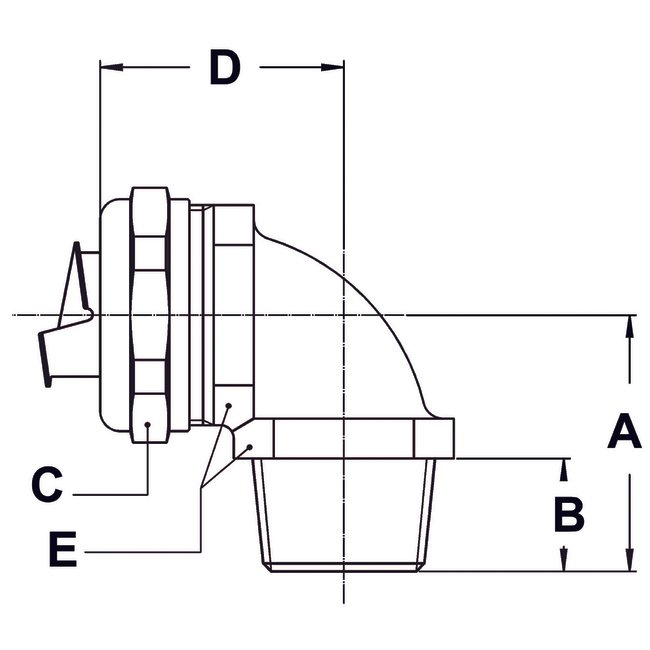

Specifications Dimension A
1.811 in
Specifications Dimension B
0.511 in
Specifications Dimension C
2.086 in
Specifications Dimension D
1.968 in
Specifications Dimension E
2.047 in
Specifications Electrical Trade Size
1-1/4 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Jacket Benefits
Liquid Tight
Specifications Thread Type
NPT
Specifications Type
Compact Nickel Plated Brass
