Nickel Plated Brass Compact Fitting ISO - 1 inch 90° Connector
Nickel Plated Brass Compact Fitting ISO - 1 inch 90° Connector
SKU:FIT-0e0dbb
Durable 1-inch Nickel Plated Brass Fitting ISO with excellent corrosion resistance and multiple certifications for safety and quality assurance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nickel Plated Brass Compact Fitting ISO - 1 inch 90° Connector
$29.99
Quantity: 1
Claim Your Seller Account
Nickel Plated Brass Compact Fitting ISO - 1 inch 90° Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

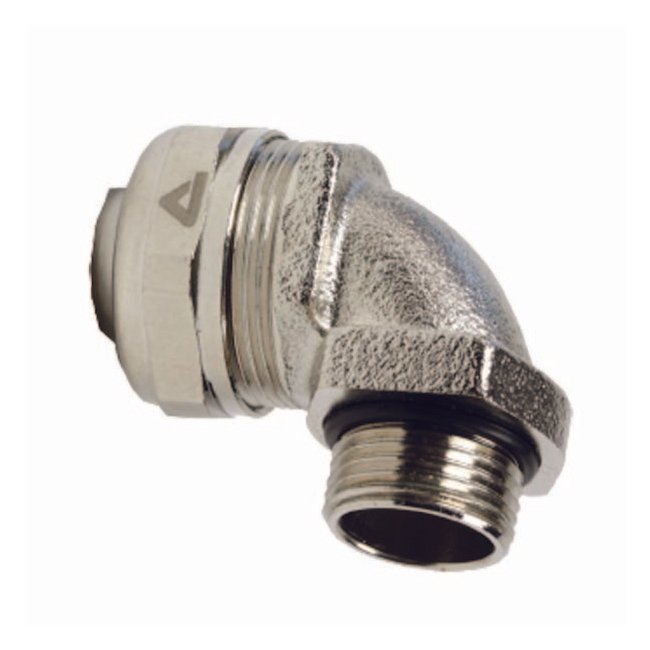

The Nickel Plated Brass Compact Fitting ISO features a sturdy four-piece construction comprising a gland nut, sealing ring, high tensile grounding cone, and body. Designed for optimal performance, it offers excellent corrosion resistance, strength, and durability. This fitting comes with UL LISTED, CSA CERTIFIED, and RoHS WEEE COMPLIANT certifications, ensuring top-notch quality and safety for your electrical installations.
Product Specifications
Specifications Connector Type
90°
Specifications Core Material
Brass

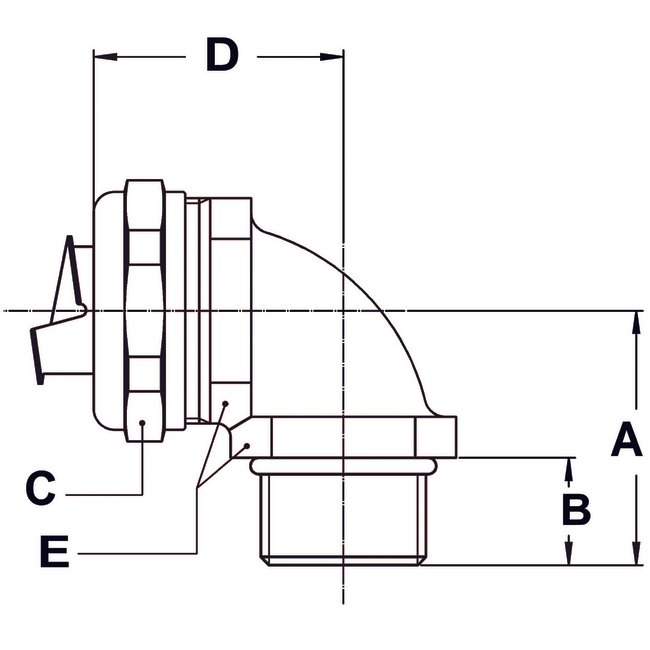

Specifications Dimension A
1.574 in
Specifications Dimension B
0.472 in
Specifications Dimension C
1.771 in
Specifications Dimension D
1.929 in
Specifications Dimension E
1.653 in
Specifications Electrical Trade Size
1 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Jacket Benefits
Liquid Tight
Specifications Thread Type
M32 X 1.5
Specifications Type
Compact Nickel Plated Brass
