Nickel Plated Brass Compact Fitting NPT - 1-1/2 in, 90°, Liquid Tight, CSA Certified
Nickel Plated Brass Compact Fitting NPT - 1-1/2 in, 90°, Liquid Tight, CSA Certified
SKU:FIT-f9dfb6
Durable 1-1/2 in Nickel Plated Brass Fitting with 90° Connector Type, CSA Certified, Liquid Tight.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nickel Plated Brass Compact Fitting NPT - 1-1/2 in, 90°, Liquid Tight, CSA Certified
$29.99
Quantity: 1
Claim Your Seller Account
Nickel Plated Brass Compact Fitting NPT - 1-1/2 in, 90°, Liquid Tight, CSA Certified
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

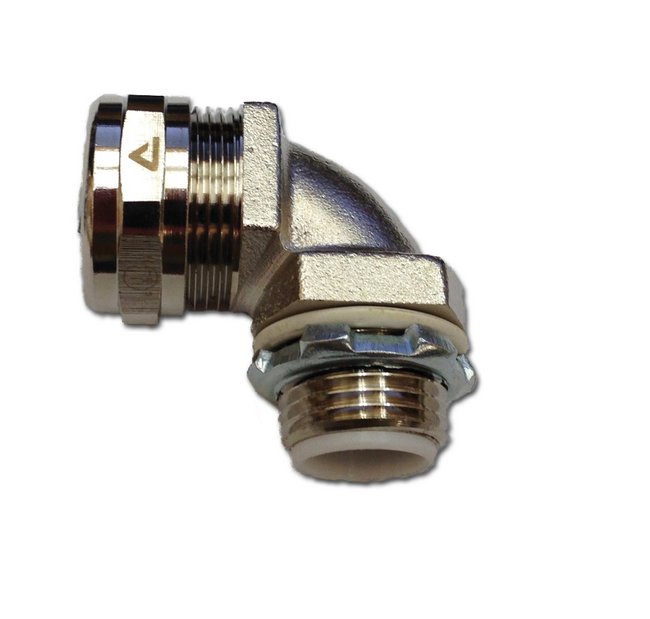

The Nickel Plated Brass Compact Fitting NPT is a durable and reliable fitting designed for various applications. Constructed from nickel plated brass with four essential parts (counter nut, clamping ring, ferrule, and body), this fitting includes a sealing ring and galvanized steel lock nut for secure connections to boxes. With certifications including UL Listed, CSA Certified, and RoHS WEEE Compliant, this fitting ensures high-quality performance and compliance with industry standards.
Product Specifications
Specifications Connector Type
90°
Specifications Core Material
Brass

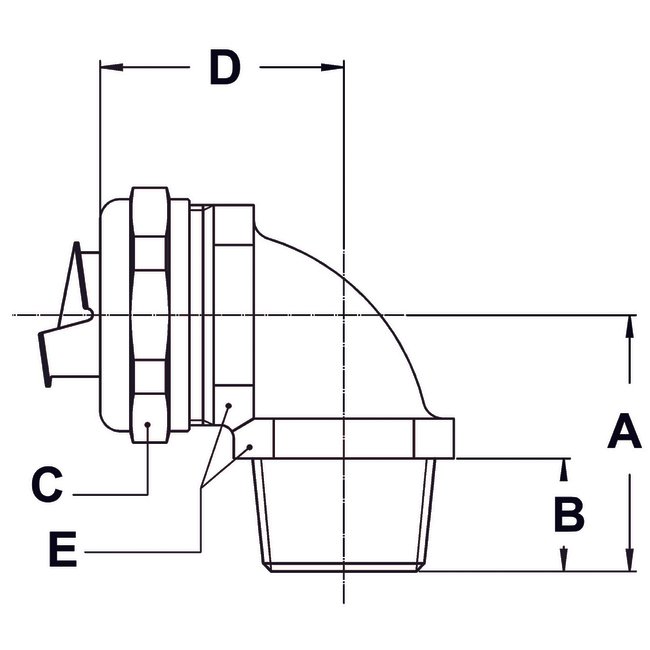

Specifications Dimension A
2.204 in
Specifications Dimension B
0.551 in
Specifications Dimension C
2.441 in
Specifications Dimension D
2.244 in
Specifications Dimension E
2.362 in
Specifications Electrical Trade Size
1-1/2 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Jacket Benefits
Liquid Tight
Specifications Thread Type
NPT
Specifications Type
Compact Nickel Plated Brass
