Nickel Plated Brass Compact Fittings ISO 3/4in 90° Connector M25x1.5
Nickel Plated Brass Compact Fittings ISO 3/4in 90° Connector M25x1.5
SKU:FIT-4e248f
Durable Nickel Plated Brass Compact Fittings ISO with precise 90° connector design and exceptional corrosion resistance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Nickel Plated Brass Compact Fittings ISO 3/4in 90° Connector M25x1.5
$24.99
Quantity: 1
Claim Your Seller Account
Nickel Plated Brass Compact Fittings ISO 3/4in 90° Connector M25x1.5
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nickel Plated Brass Compact Fittings ISO offer exceptional durability and corrosion resistance, featuring a four-piece construction with a gland nut, sealing ring, grounding cone, and body. Specifically designed for easy connection to boxes, these fittings are UL Listed, CSA Certified, and RoHS WEEE Compliant. With dimensions tailored for precise fittings and a sturdy brass core material, these fittings provide reliable performance. The Ingress Protection (IP) Rating of 66/67 ensures superior protection. Suitable for various applications requiring liquid tightness.
Product Specifications
Specifications Connector Type
90°
Specifications Core Material
Brass

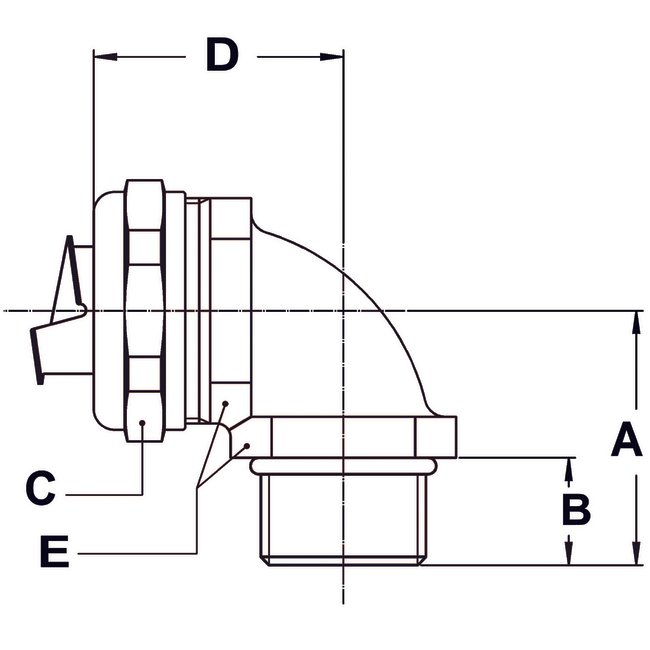

Specifications Dimension A
1.26 in
Specifications Dimension B
0.393 in
Specifications Dimension C
1.378 in
Specifications Dimension D
1.574 in
Specifications Dimension E
1.299 in
Specifications Electrical Trade Size
3/4 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Jacket Benefits
Liquid Tight
Specifications Thread Type
M25 X 1.5
Specifications Type
Compact Nickel Plated Brass
