Nickel Plated Brass Compact Fittings ISO - 90° Connector, 1-1/2 in
Nickel Plated Brass Compact Fittings ISO - 90° Connector, 1-1/2 in
SKU:FIT-ab8c0b
Durable Nickel Plated Brass Fitting - UL Listed, CSA Certified, RoHS Compliant
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Nickel Plated Brass Compact Fittings ISO - 90° Connector, 1-1/2 in
$24.99
Quantity: 1
Claim Your Seller Account
Nickel Plated Brass Compact Fittings ISO - 90° Connector, 1-1/2 in
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

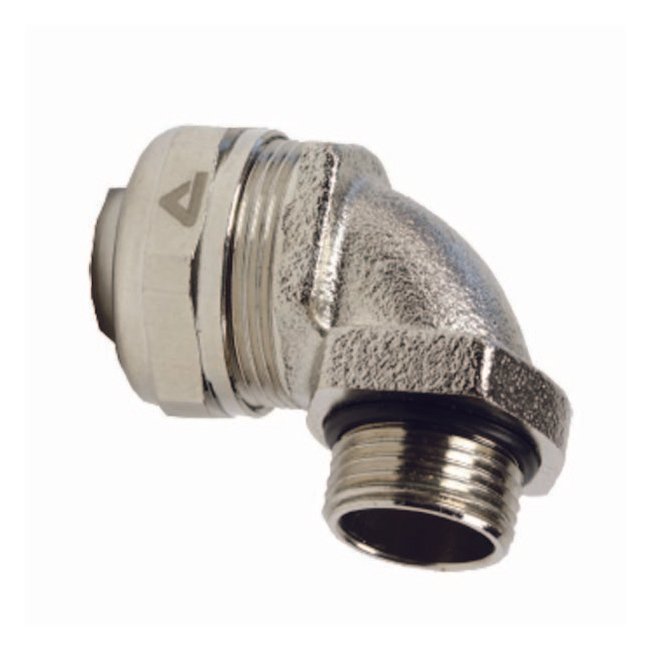

Meet your industry needs with our Nickel Plated Brass Compact Fittings ISO. This fitting boasts a four-piece construction including a gland nut, sealing ring, grounding cone, and body, ensuring secure connections to boxes. Crafted from durable brass with a nickel plating for excellent corrosion resistance, it offers strength and reliability. Certified UL Listed, CSA Certified, and RoHS/WEEE compliant for quality assurance.
Product Specifications
Specifications Connector Type
90°
Specifications Core Material
Brass

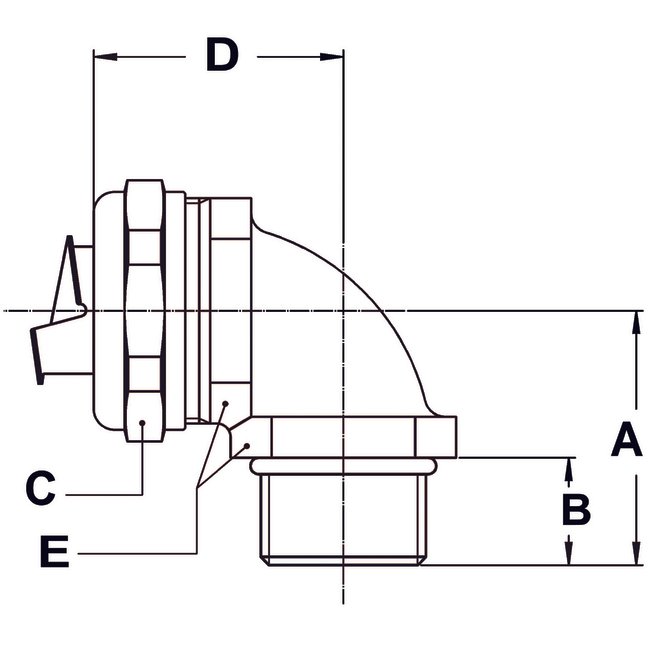

Specifications Dimension A
2.204 in
Specifications Dimension B
0.551 in
Specifications Dimension C
2.441 in
Specifications Dimension D
2.244 in
Specifications Dimension E
2.362 in
Specifications Electrical Trade Size
1-1/2 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Jacket Benefits
Liquid Tight
Specifications Thread Type
M50 X 1.5
Specifications Type
Compact Nickel Plated Brass
