Nickel Plated Brass Compact Fittings NPT 2 inch Straight

Name: Nickel Plated Brass Compact Fittings NPT 2 inch Straight
Brand: Anamet Electrical, Inc.
SKU: FIT-f3e109
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-f3e109

Durable Nickel Plated Brass Compact Fittings NPT 2-inch Straight for secure connections. UL Listed, CSA Certified, RoHS WEEE Compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

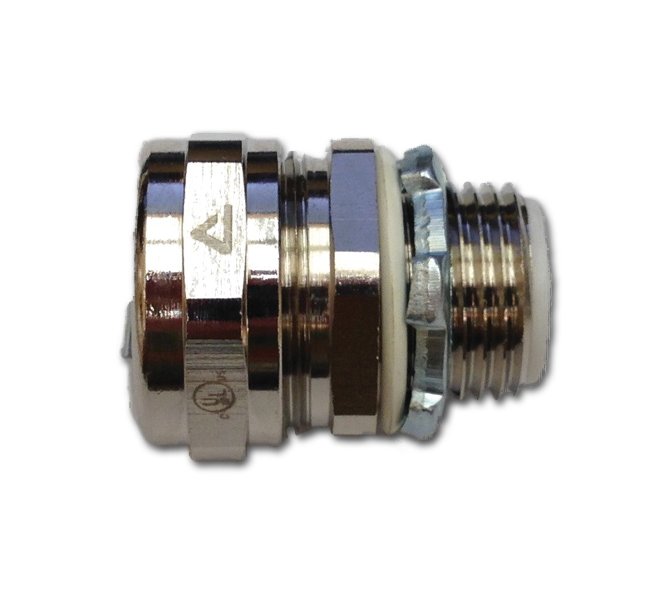

The Nickel Plated Brass Compact Fittings NPT 2-inch Straight is a durable and versatile fitting designed for secure connections. Constructed with nickel-plated brass, this fitting consists of a counter nut, clamping ring, ferrule, and body with included sealing ring and galvanized steel lock nut for box connections. Certified UL Listed, CSA Certified, and RoHS WEEE Compliant, this fitting meets high industry standards for safety and quality. With a core material of brass and an IP rating of 66/67, it provides reliable liquid-tight protection.

Product Specifications

Specifications Connector Type

Straight

Specifications Core Material

Brass

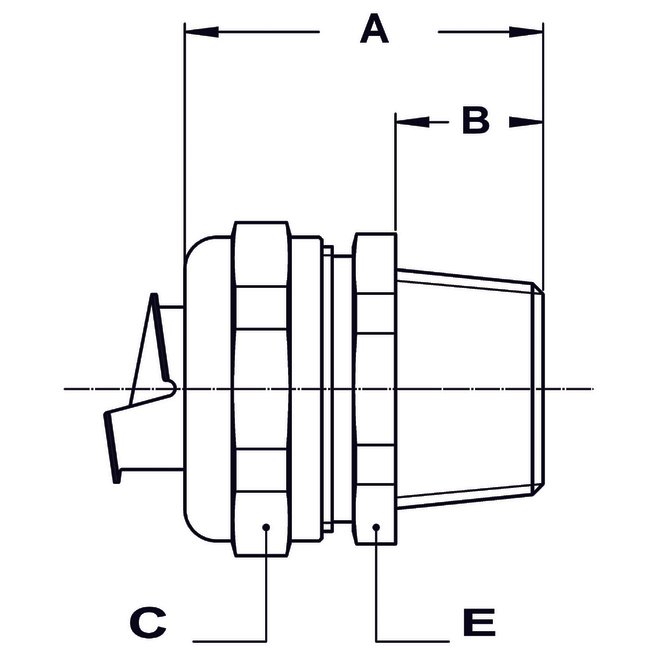

Specifications Dimension A

2.126 in

Specifications Dimension B

0.748 in

Specifications Dimension C

2.992 in

Specifications Dimension E

2.834 in

Specifications Electrical Trade Size

2 in

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Jacket Benefits

Liquid Tight

Specifications Thread Type

NPT

Specifications Type

Compact Nickel Plated Brass

Nickel Plated Brass Compact Fittings NPT 2 inch Straight
