Nickel Plated Brass NPT Fitting, 1-1/2 in, Straight Connector

Name: Nickel Plated Brass NPT Fitting, 1-1/2 in, Straight Connector
Brand: Anamet Electrical, Inc.
SKU: FIT-ad9af8
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-ad9af8

High-quality Nickel Plated Brass NPT Fitting with UL Listed & CSA Certified, perfect for secure box connections.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

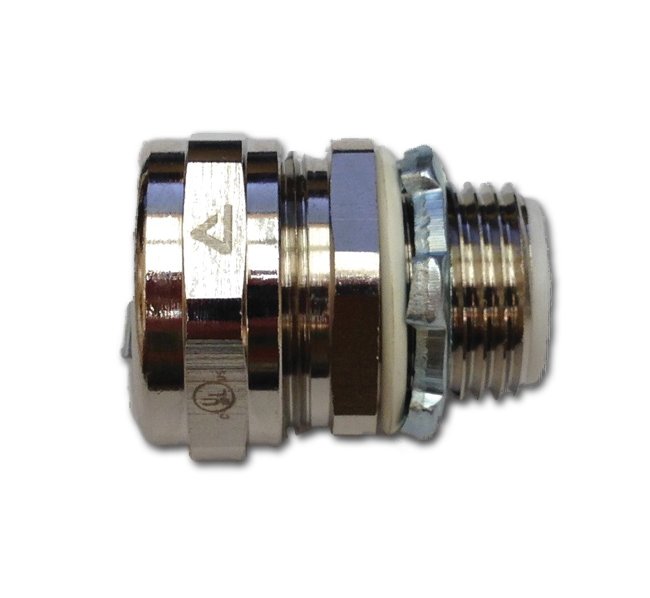

The Nickel Plated Brass Compact Fitting NPT is a high-quality construction featuring a nickel plated brass body with 4 essential parts: counter nut, clamping ring, ferrule, and body. Equipped with a sealing ring and galvanized steel lock nut, this fitting ensures secure connections to various boxes. With UL Listed, CSA Certified, and RoHS WEEE Compliant certifications, this fitting meets stringent quality and safety standards, making it ideal for both consumer and institutional use.

Product Specifications

Specifications Connector Type

Straight

Specifications Core Material

Brass

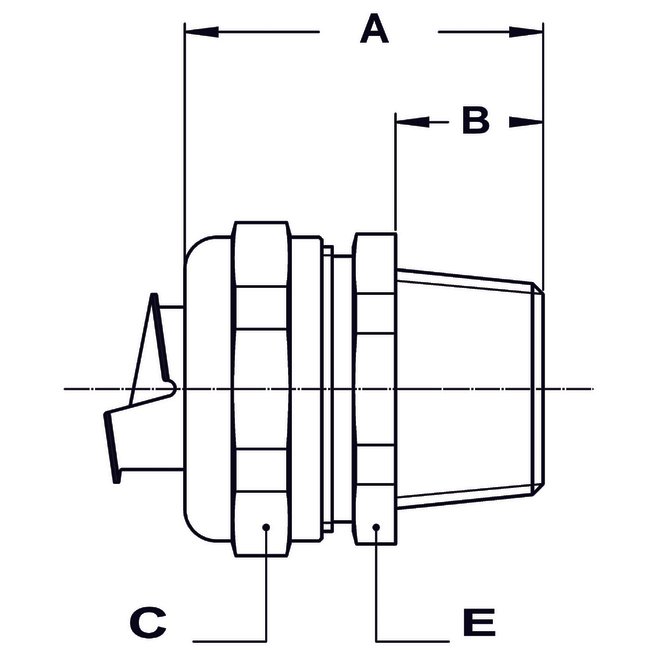

Specifications Dimension A

1.889 in

Specifications Dimension B

0.630 in

Specifications Dimension C

2.440 in

Specifications Dimension E

2.362 in

Specifications Electrical Trade Size

1-1/2 in

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Jacket Benefits

Liquid Tight

Specifications Thread Type

NPT

Specifications Type

Compact Nickel Plated Brass

Nickel Plated Brass NPT Fitting, 1-1/2 in, Straight Connector
