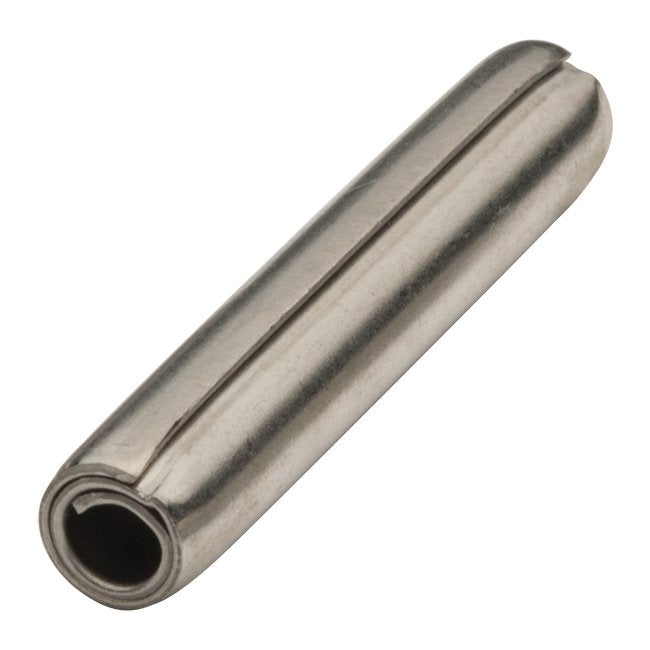

Nickel Stainless Steel Coiled Pin - 6mm x 60mm, Standard Duty
Nickel Stainless Steel Coiled Pin - 6mm x 60mm, Standard Duty
SKU:COI-2131fa
Discover strength and flexibility with our 6mm x 60mm Nickel Stainless Steel Coiled Pin - perfect for nonferrous, mild steel assemblies!
Regular price
$334.05
Regular price
Sale price
$334.05
Unit price
per
Initiate Order
Nickel Stainless Steel Coiled Pin - 6mm x 60mm, Standard Duty
$334.05
Quantity: 1
Claim Your Seller Account
Nickel Stainless Steel Coiled Pin - 6mm x 60mm, Standard Duty
$334.05
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your assemblies with the CLDP 6. X 60. MDK Standard Duty Coiled Spring Pin. Designed to provide optimal strength and flexibility in nonferrous and mild steel applications, this coiled pin is made of high-quality nickel stainless steel, meeting ISO 8750 and ASME B18.8.3M standards. With a double shear strength of 16.80 kN and precise dimensions, this pin ensures reliable performance. Order globally trusted SPIROL Coiled Pins today for shock-absorbing and vibration-resistant solutions.
Product Specifications
Specifications Asme
B18.8.3M
Specifications Chamfer Diameter B Max
5.85 mm
Specifications Chamfer Length C Ref
1.50 mm
Specifications Diameter D Max
6.50 mm
Specifications Diameter D Min
6.25 mm
Specifications Duty
Standard
Specifications Finish
Plain
Specifications Heat Treatment
Work Hardened
Specifications Iso
8750
Specifications Length L
60 mm
Specifications Length Tolerance
±0.75
Specifications Material Grade
UNS S30200 / S30400 X10CrNi18-8 (1.4310)
Specifications Material Type
Nickel Stainless Steel
Specifications Minimum Double Shear Strength
16.80 kN
Specifications Nominal Dia
6 mm
Specifications Order Processing Note
Orders typically ship in 2-3 business days. Orders received after 3pm EST will be processed on the next business day.
Specifications Package Type
Box
Specifications Pin Straightness Tolerance Max
0.48
Specifications Pin Straightness Tolerance Min
0.42
Specifications Price Per Package Unit
334.05 USD | 445.29 CAD | 311.31 EUR | 176.03 GBP
Specifications Recommended Hole Size Max
6.15 mm
Specifications Recommended Hole Size Min
6.00 mm
Specifications Units Per Box
500
Specifications Weight Per Piece
0.0082573 kg | 0.018204 lb
