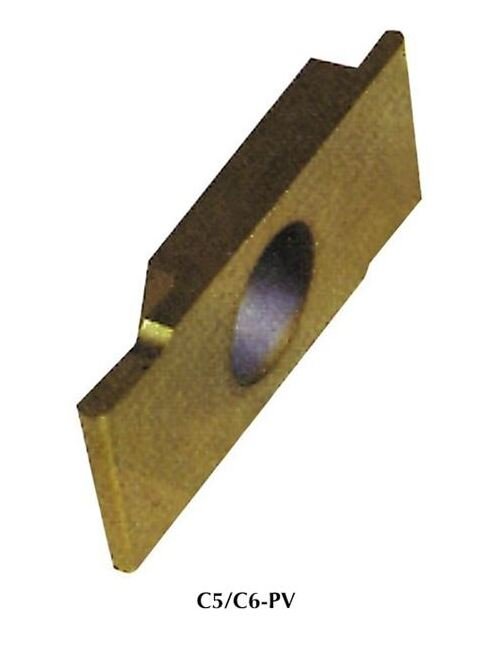

Nikcole C5-PV Carbide Groove Insert
Nikcole C5-PV Carbide Groove Insert
SKU:CUT-0b5f10
Achieve precision grooving in steel with the Nikcole C5-PV Carbide Groove Insert featuring PVD coating for durability and precise cutting results.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
Nikcole C5-PV Carbide Groove Insert
$32.99
Quantity: 1
Claim Your Seller Account
Nikcole C5-PV Carbide Groove Insert
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

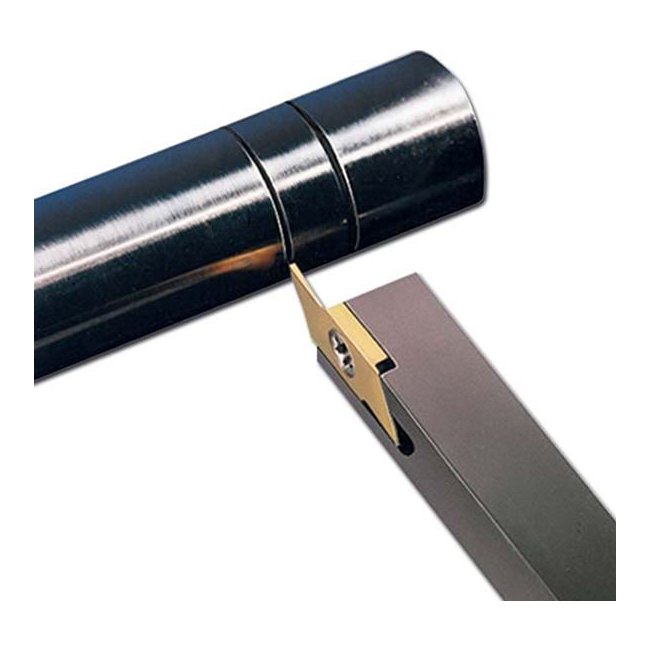

The Nikcole GIE-7-GR-1.0 Grade C5-PV Carbide Right Hand Full 0.019 Inch Radius Groove Insert is designed for precision grooving in steel applications, ensuring optimal performance and durability. Utilizing Physical Vapor Deposition (PVD) coating with Titanium Aluminum Nitride (TiAlN) + Titanium Nitride (TiN), this insert offers exceptional wear resistance and longevity. With an insert length of 0.669 in, a thickness of 0.079 in, and a radius of 0.019 in, it provides precise cutting results suitable for small grooves and solid bars. Made in the U.S.A., this insert is compatible with NIKCOLE threading and full radius inserts, making it a reliable choice for industrial machining needs.
Product Specifications
Additional Information Additional Information
Two cutting edgesGreat for small groovesHolders fits NIKCOLE threading & full radius inserts
Note Note
Made in the U.S.A.
Technical Specs Brands
Nikcole Mini-Systems⢠| Penn Tool Co.
Technical Specs Coating
Physical Vapor Deposition (PVD) | Titanium Aluminum Nitride (TiAlN) + Titanium Nitride (TiN)
Technical Specs Depth Of Cut
0.235 in
Technical Specs Insert Length
0.669 in
Technical Specs Insert Thickness
0.079 in
Technical Specs Radius
0.019 in
Technical Specs Width
0.039 in
