Nikcole C5-PV Carbide Right Hand Grooving Insert 0.39"
Nikcole C5-PV Carbide Right Hand Grooving Insert 0.39"
SKU:CUT-021fd3
Nikcole C5-PV Carbide Grooving Insert for steel machining, featuring PVD coating and 0.39" width.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Nikcole C5-PV Carbide Right Hand Grooving Insert 0.39"
$25.99
Quantity: 1
Claim Your Seller Account
Nikcole C5-PV Carbide Right Hand Grooving Insert 0.39"
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

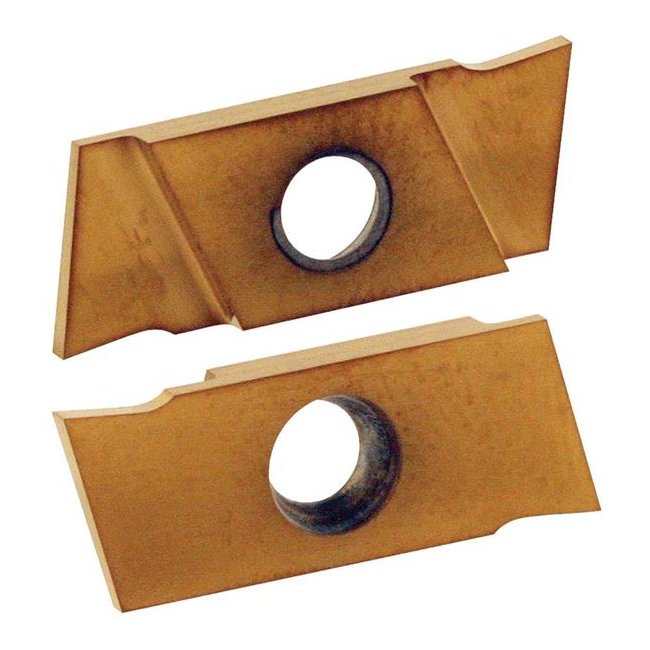

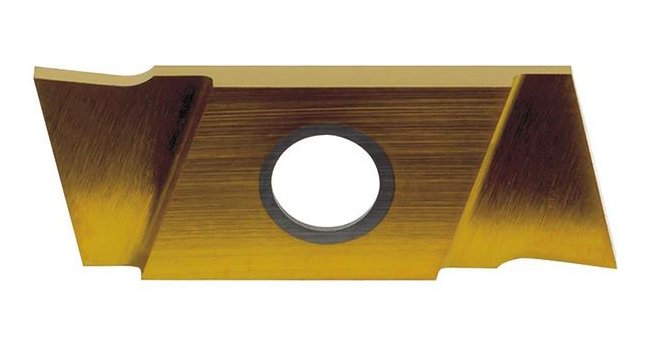

The Nikcole GIE-7-GP-1.0RR C5-PV Carbide Grooving Insert is designed for strong grooving systems, recommended for machining steels, cutting solid bars, and handling interrupted cuts. With a parallelogram shape and held tangentially, this insert features a Physical Vapor Deposition (PVD) coating of Titanium Aluminum Nitride (TiAlN) + Titanium Nitride (TiN). It offers an insert length of 0.669 in, thickness of 0.079 in, width of 0.39 in, and a maximum depth of cut of 0.235 in. This insert has two cutting edges, making it ideal for small grooves and can be used with NIKCOLE threading & full radius inserts. Proudly made in the U.S.A., this high-quality tool ensures precise and efficient cutting in industrial applications.
Product Specifications
Additional Information Additional Information
Two cutting edgesGreat for small groovesHolders fits NIKCOLE threading & full radius inserts
Note Note
Made in the U.S.A.
Technical Specs Brands
Nikcole Mini-Systems⢠| Penn Tool Co.
Technical Specs Coating
Physical Vapor Deposition (PVD) | Titanium Aluminum Nitride (TiAlN) + Titanium Nitride (TiN)
Technical Specs Insert Length
0.669 in
Technical Specs Insert Thickness
0.079 in
Technical Specs Maximum Depth Of Cut
0.235 in
Technical Specs Width
0.39 in
