Nikcole Carbide Left Hand Grooving Insert - Grade C5-PV
Nikcole Carbide Left Hand Grooving Insert - Grade C5-PV
SKU:CUT-4b7c5b
Premium Nikcole Carbide Left Hand Grooving Insert for precise steel machining. Two cutting edges for small grooves. Made in the U.S.A.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Nikcole Carbide Left Hand Grooving Insert - Grade C5-PV
$24.99
Quantity: 1
Claim Your Seller Account
Nikcole Carbide Left Hand Grooving Insert - Grade C5-PV
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

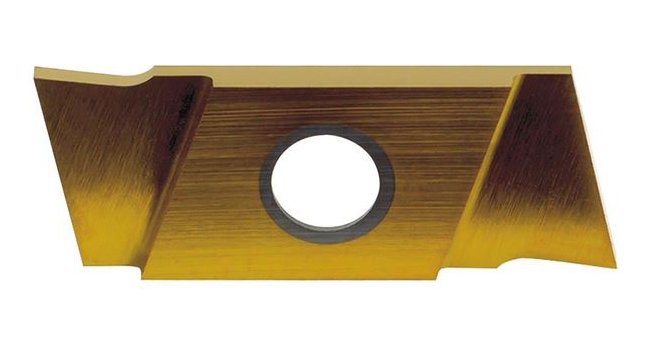

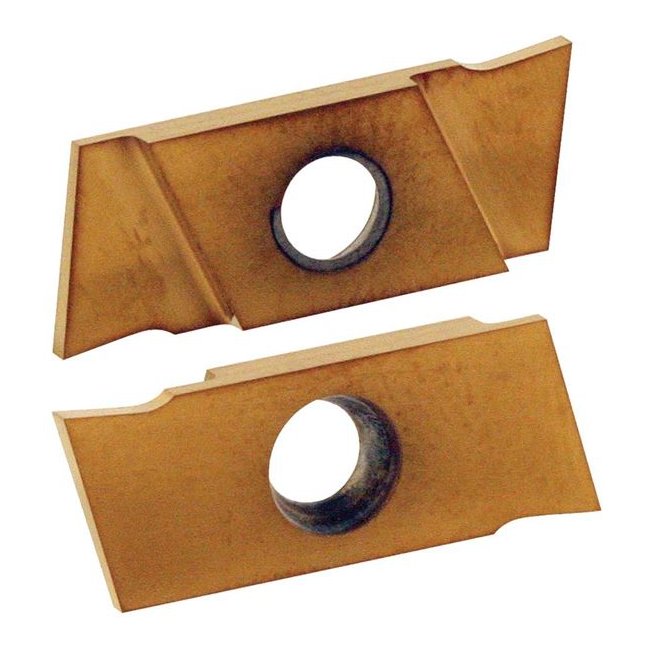

The Nikcole GIE-7-GP-1.0LR C5-PV Carbide Insert is designed for strong grooving systems, ideal for machining steels and solid bars. With a parallelogram shape and a titanium-coated surface, this insert offers precise cutting with two edges, perfect for creating small grooves efficiently. Made in the U.S.A., this insert is compatible with NIKCOLE threading & full radius holders, ensuring high performance and durability in industrial applications.
Product Specifications
Additional Information Additional Information
Two cutting edgesGreat for small groovesHolders fits NIKCOLE threading & full radius inserts
Note Note
Made in the U.S.A.
Technical Specs Brands
Nikcole Mini-Systems⢠| Penn Tool Co.
Technical Specs Coating
Physical Vapor Deposition (PVD) | Titanium Aluminum Nitride (TiAlN) + Titanium Nitride (TiN)
Technical Specs Insert Length
0.669 in
Technical Specs Insert Thickness
0.079 in
Technical Specs Maximum Depth Of Cut
0.235 in
Technical Specs Width
0.39 in
