Nikcole Carbide Right Hand Grooving Insert C5-PV 0.79in
Nikcole Carbide Right Hand Grooving Insert C5-PV 0.79in
SKU:CUT-03a140
High-performance C5-PV carbide grooving/cut-off insert for precise steel machining with PVD coating. Made in the U.S.A.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Nikcole Carbide Right Hand Grooving Insert C5-PV 0.79in
$45.99
Quantity: 1
Claim Your Seller Account
Nikcole Carbide Right Hand Grooving Insert C5-PV 0.79in
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

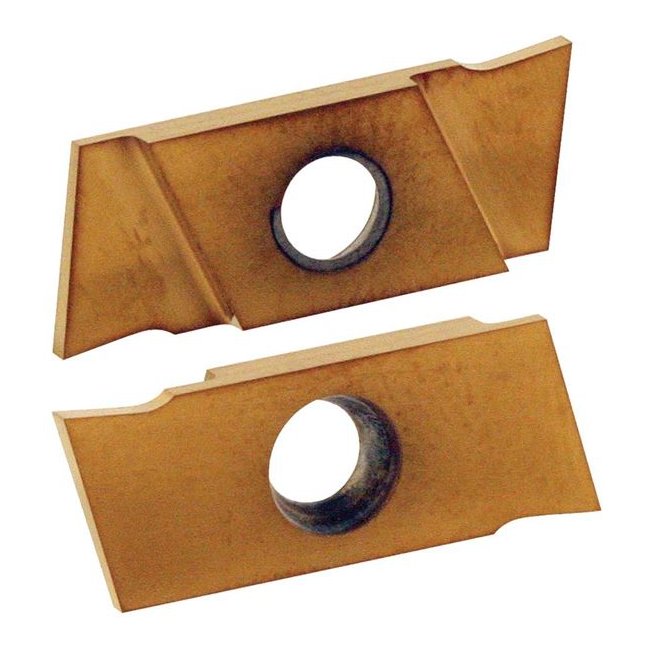

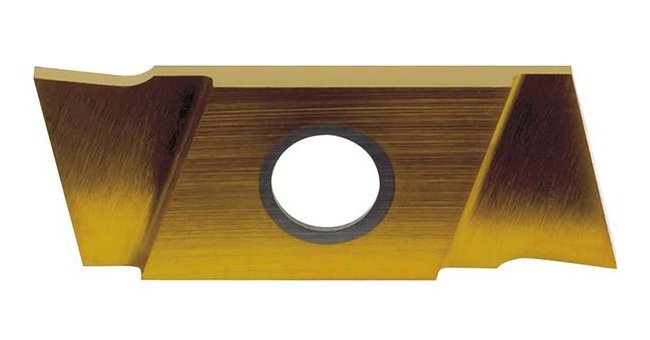

The Nikcole GIE-7-GP-2.0RL C5-PV Carbide Right Hand Grooving Insert is designed for strong grooving systems, recommended for machining steels, cutting solid bars, and handling interrupted cuts with precision. With parallelogram shape and tangential hold, this insert offers maximum depth of 0.235in, two cutting edges, and a width of 0.79in. The Physical Vapor Deposition (PVD) coating ensures durability and performance, while its USA production guarantees quality standards adherence. Ideal for small grooves, this insert fits NIKCOLE threading & full radius holders.
Product Specifications
Additional Information Additional Information
Two cutting edgesGreat for small groovesHolders fits NIKCOLE threading & full radius inserts
Note Note
Made in the U.S.A.
Technical Specs Brands
Nikcole Mini-Systems⢠| Penn Tool Co.
Technical Specs Coating
Physical Vapor Deposition (PVD) | Titanium Aluminum Nitride (TiAlN) + Titanium Nitride (TiN)
Technical Specs Insert Length
0.669 in
Technical Specs Insert Thickness
0.079 in
Technical Specs Maximum Depth Of Cut
0.235 in
Technical Specs Width
0.79 in
