Nikcole GIE-7-SG-0.5 C5-PV Carbide Grooving Insert
Nikcole GIE-7-SG-0.5 C5-PV Carbide Grooving Insert
SKU:CUT-974ee1
Maximize machining precision with the Nikcole C5-PV Carbide Grooving Insert - ideal for steels and small grooves.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nikcole GIE-7-SG-0.5 C5-PV Carbide Grooving Insert
$29.99
Quantity: 1
Claim Your Seller Account
Nikcole GIE-7-SG-0.5 C5-PV Carbide Grooving Insert
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

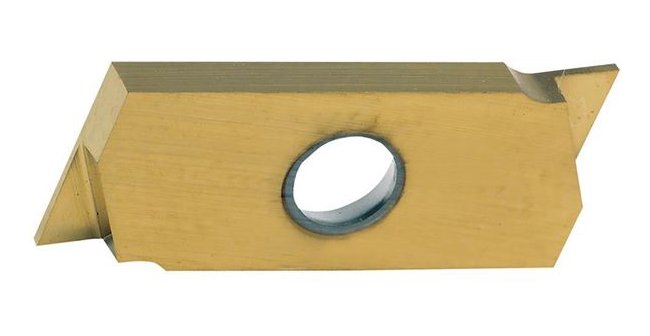

Enhance your machining capabilities with the Nikcole GIE-7-SG-0.5 C5-PV Carbide Grooving Insert. This parallelogram-shaped insert offers exceptional strength for grooving and cut-off operations. Grade C5-PV ensures optimal performance when machining steels and handling interrupted cuts. With a width of 0.19 inches, insert length of 0.669 inches, and two cutting edges, this insert excels in creating small grooves with precision. The Physical Vapor Deposition (PVD) coating guarantees durability, while the TiAlN and TiN combination enhances wear resistance. Made in the U.S.A., this insert ensures reliability and quality for your machining needs.
Product Specifications
Additional Information Additional Information
Two cutting edgesGreat for small groovesHolders fits NIKCOLE threading & full radius inserts
Note Note
Made in the U.S.A.
Technical Specs Brands
Nikcole Mini-Systems⢠| Penn Tool Co.
Technical Specs Coating
Physical Vapor Deposition (PVD) | Titanium Aluminum Nitride (TiAlN) + Titanium Nitride (TiN)
Technical Specs Depth Of Cut
0.100 in
Technical Specs Insert Length
0.669 in
Technical Specs Insert Thickness
0.079 in
Technical Specs Width
0.19 in
