Nikcole GIE-7-SG-0.8 C6-PV Carbide Right Hand Grooving Insert
Nikcole GIE-7-SG-0.8 C6-PV Carbide Right Hand Grooving Insert
SKU:CUT-d5d7a8
Achieve high-speed precision grooving with the Nikcole C6-PV Carbide Right Hand Insert. Made in the U.S.A.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nikcole GIE-7-SG-0.8 C6-PV Carbide Right Hand Grooving Insert
$29.99
Quantity: 1
Claim Your Seller Account
Nikcole GIE-7-SG-0.8 C6-PV Carbide Right Hand Grooving Insert
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

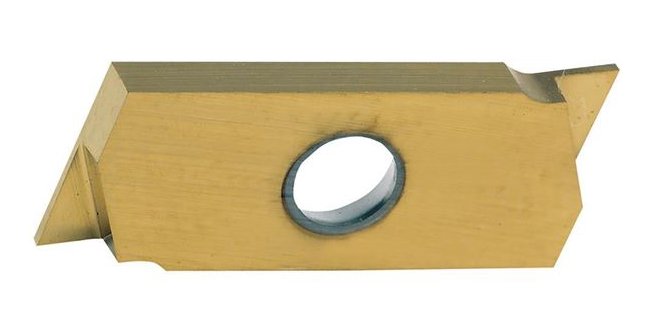

The Nikcole Standard GIE-7-SG-0.8 C6-PV Carbide Right Hand Grooving Insert is a precision-engineered cutting tool insert designed for high-speed machining of steels. With a Grade C6-PV coating featuring Physical Vapor Deposition (PVD) and Titanium Aluminum Nitride (TiAlN) + Titanium Nitride (TiN), this insert offers exceptional durability and performance. It boasts a width of 0.31 inches, an insert length of 0.669 inches, and a thickness of 0.079 inches, making it ideal for creating small grooves with a depth of cut up to 0.100 inches. Made in the U.S.A., this insert is compatible with NIKCOLE threading & full radius holders, providing two cutting edges for efficient operations.
Product Specifications
Additional Information Additional Information
Two cutting edgesGreat for small groovesHolders fits NIKCOLE threading & full radius inserts
Note Note
Made in the U.S.A.
Technical Specs Brands
Nikcole Mini-Systems⢠| Penn Tool Co.
Technical Specs Coating
Physical Vapor Deposition (PVD) | Titanium Aluminum Nitride (TiAlN) + Titanium Nitride (TiN)
Technical Specs Depth Of Cut
0.100 in
Technical Specs Insert Length
0.669 in
Technical Specs Insert Thickness
0.079 in
Technical Specs Width
0.31 in
