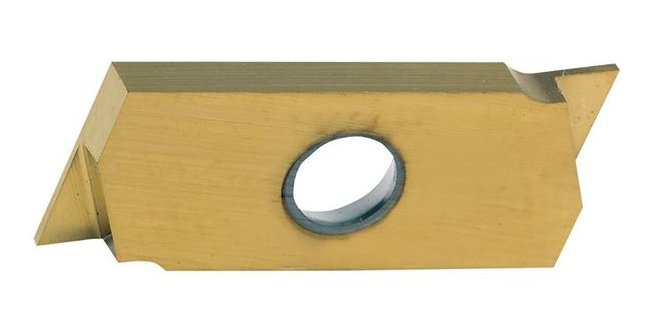

Nikcole Mini-Systems GIE-7-SG-1.1 C5-PV Carbide 0.43in Right Hand Grooving Insert
Nikcole Mini-Systems GIE-7-SG-1.1 C5-PV Carbide 0.43in Right Hand Grooving Insert
SKU:CUT-9806d4
High-quality C5-PV carbide grooving insert for precise cuts on steels and solid bars. Made in the U.S.A.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nikcole Mini-Systems GIE-7-SG-1.1 C5-PV Carbide 0.43in Right Hand Grooving Insert
$29.99
Quantity: 1
Claim Your Seller Account
Nikcole Mini-Systems GIE-7-SG-1.1 C5-PV Carbide 0.43in Right Hand Grooving Insert
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nikcole Standard GIE-7-SG-1.1 C5-PV Carbide Right Hand Grooving Insert is a top-quality parallelogram-shaped insert designed for strong grooving systems. With a Grade C5-PV coating of Physical Vapor Deposition (PVD) and Titanium Aluminum Nitride (TiAlN) + Titanium Nitride (TiN), it is ideal for machining steels, cutting solid bars, and handling interrupted cuts. This insert boasts a width of 0.43 inches, an insert length of 0.669 inches, and a thickness of 0.079 inches. It features two cutting edges, making it perfect for creating precise and small grooves. Proudly made in the U.S.A., this insert is compatible with NIKCOLE threading & full radius holders.
Product Specifications
Additional Information Additional Information
Two cutting edgesGreat for small groovesHolders fits NIKCOLE threading & full radius inserts
Note Note
Made in the U.S.A.
Technical Specs Brands
Nikcole Mini-Systems⢠| Penn Tool Co.
Technical Specs Coating
Physical Vapor Deposition (PVD) | Titanium Aluminum Nitride (TiAlN) + Titanium Nitride (TiN)
Technical Specs Depth Of Cut
0.235 in
Technical Specs Insert Length
0.669 in
Technical Specs Insert Thickness
0.079 in
Technical Specs Width
0.43 in
