Nikcole Standard Left Hand Grooving/Cut-Off Carbide Insert - C6-PV Grade
Nikcole Standard Left Hand Grooving/Cut-Off Carbide Insert - C6-PV Grade
SKU:CUT-c24c86
High-speed C6-PV carbide insert for precise left-hand grooving/cut-off. Ideal for small grooves in steels.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Nikcole Standard Left Hand Grooving/Cut-Off Carbide Insert - C6-PV Grade
$24.99
Quantity: 1
Claim Your Seller Account
Nikcole Standard Left Hand Grooving/Cut-Off Carbide Insert - C6-PV Grade
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

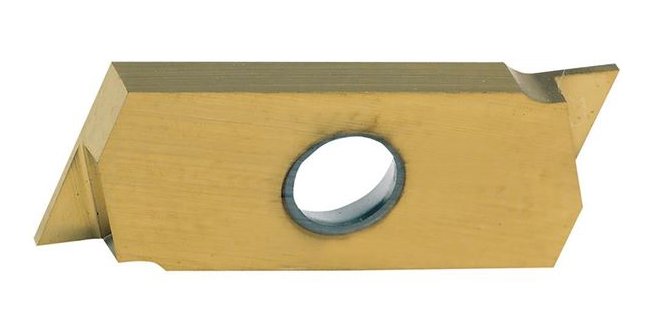

The Nikcole Standard GIE-7-SG-1.1 C6-PV Carbide Left Hand Grooving/Cut-Off Insert is designed for high-speed machining of steels. This parallelogram-shaped insert features a physical vapor deposition (PVD) coating for durability and precision. With a width of 0.43 inches and two cutting edges, it is ideal for creating small grooves with a depth of cut up to 0.235 inches. Made in the U.S.A., this insert is compatible with NIKCOLE threading & full radius holders, providing a strong grooving system for industrial applications.
Product Specifications
Additional Information Additional Information
Two cutting edgesGreat for small groovesHolders fits NIKCOLE threading & full radius inserts
Note Note
Made in the U.S.A.
Technical Specs Brands
Nikcole Mini-Systems⢠| Penn Tool Co.
Technical Specs Coating
Physical Vapor Deposition (PVD) | Titanium Aluminum Nitride (TiAlN) + Titanium Nitride (TiN)
Technical Specs Depth Of Cut
0.235 in
Technical Specs Insert Length
0.669 in
Technical Specs Insert Thickness
0.079 in
Technical Specs Width
0.43 in
