Nikcole Standard Left Hand Grooving Insert C5-PV Carbide 0.73in Width GIE-7-SG-1.85
Nikcole Standard Left Hand Grooving Insert C5-PV Carbide 0.73in Width GIE-7-SG-1.85
SKU:CUT-1c8d34
Enhance your machining with Nikcole Standard Left Hand Grooving Insert for precise steel cutting and interrupted cuts.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Nikcole Standard Left Hand Grooving Insert C5-PV Carbide 0.73in Width GIE-7-SG-1.85
$25.99
Quantity: 1
Claim Your Seller Account
Nikcole Standard Left Hand Grooving Insert C5-PV Carbide 0.73in Width GIE-7-SG-1.85
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

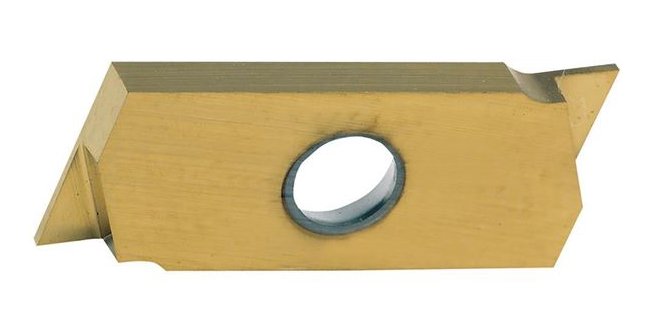

The Nikcole Standard GIE-7-SG-1.85 C5-PV Carbide Left Hand Grooving Insert is designed for precision grooving and cut-off applications. With a Grade C5-PV coating featuring Physical Vapor Deposition (PVD) and Titanium Aluminum Nitride (TiAlN) + Titanium Nitride (TiN), this insert offers exceptional durability and performance when machining steels, cutting solid bars to the center, and handling interrupted cuts. It features a parallelogram shape, two cutting edges, and dimensions of 0.73 inch width, 0.669 inch length, and 0.079 inch thickness. Made in the U.S.A., this insert is compatible with NIKCOLE threading and full-radius holders, making it an ideal choice for creating small grooves with precision and efficiency.
Product Specifications
Additional Information Additional Information
Two cutting edgesGreat for small groovesHolders fits NIKCOLE threading & full radius inserts
Note Note
Made in the U.S.A.
Technical Specs Brands
Nikcole Mini-Systems⢠| Penn Tool Co.
Technical Specs Coating
Physical Vapor Deposition (PVD) | Titanium Aluminum Nitride (TiAlN) + Titanium Nitride (TiN)
Technical Specs Depth Of Cut
0.235 in
Technical Specs Insert Length
0.669 in
Technical Specs Insert Thickness
0.079 in
Technical Specs Width
0.73 in
