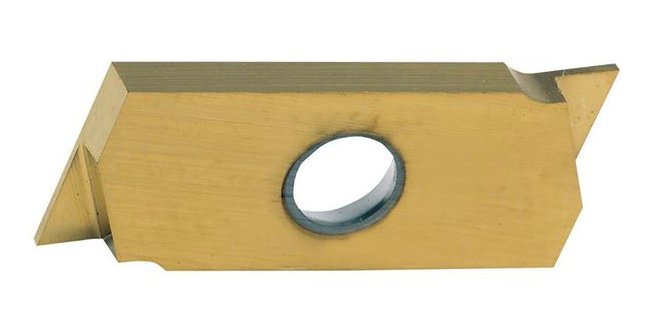

Nikcole Standard Right Hand Grooving/Cut-Off Insert - C6-PV Carbide 0.63in Width
Nikcole Standard Right Hand Grooving/Cut-Off Insert - C6-PV Carbide 0.63in Width
SKU:CUT-01af92
High-performance C6-PV Carbide Insert for precise grooving & cut-off. Made in the U.S.A.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Nikcole Standard Right Hand Grooving/Cut-Off Insert - C6-PV Carbide 0.63in Width
$34.99
Quantity: 1
Claim Your Seller Account
Nikcole Standard Right Hand Grooving/Cut-Off Insert - C6-PV Carbide 0.63in Width
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nikcole Standard GIE-7-SG-1.6 C6-PV Carbide Insert is specifically designed for precision grooving and cut-off operations. With a Grade C6-PV coating for enhanced durability and efficiency, these inserts excel in machining steels at high speeds. Featuring a parallelogram shape and held tangentially for superior stability, these inserts offer a reliable solution for creating small grooves with a depth of cut up to 0.235in. Made in the U.S.A., these inserts are compatible with Nikcole threading & full radius holders, providing two cutting edges for versatile applications.
Product Specifications
Additional Information Additional Information
Two cutting edgesGreat for small groovesHolders fits NIKCOLE threading & full radius inserts
Note Note
Made in the U.S.A.
Technical Specs Brands
Nikcole Mini-Systems⢠| Penn Tool Co.
Technical Specs Coating
Physical Vapor Deposition (PVD) | Titanium Aluminum Nitride (TiAlN) + Titanium Nitride (TiN)
Technical Specs Depth Of Cut
0.235 in
Technical Specs Insert Length
0.669 in
Technical Specs Insert Thickness
0.079 in
Technical Specs Width
0.63 in
