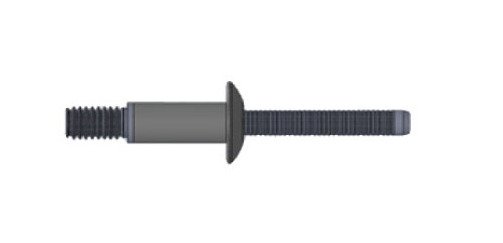

Nitlock 14.2mm Steel Protruding Head Rivet
Nitlock 14.2mm Steel Protruding Head Rivet
SKU:NIT-a3f92e
High-strength 14.2mm steel rivet with double locking system, flush break, and vibration resistance. Ideal for solar frame applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Nitlock 14.2mm Steel Protruding Head Rivet
$49.99
Quantity: 1
Claim Your Seller Account
Nitlock 14.2mm Steel Protruding Head Rivet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nitlock 14.2mm Steel Protruding Head Rivet is a high-strength structural rivet featuring a double locking system for enhanced security. With vibration resistance and always flush break capabilities, this rivet ensures reliable performance. Constructed from carbon steel with a zinc-plated chromium VI free passivation finish, it offers durability and corrosion resistance. Its protruding head style and wide grip range make it ideal for various applications, especially in solar frame structures. With a nominal shear force of 1590 kgf and a nominal tensile force of 865 kgf, this rivet guarantees strong and secure fastening.
Product Specifications
Applications Renewable Energy Application
Solar FrameStructural rivet with high strength comes with Double locking system. Always flush break and Vibration resistance. has a Wide grip range.
Nominal Dimensions Body Length
14.2 mm | 0.559 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.63 to 6.90 mm | 0.261 to 0.272 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
3.0 mm | 0.118 in
Nominal Dimensions Mandrel Diameter
4.10 mm | 0.161 in
Nominal Dimensions Maximum Grip Range
9.5 mm | 0.374 in
Nominal Dimensions Minimum Grip Range
2.5 mm | 0.098 in
Nominal Forces Nominal Shear Force
1590 kgf | 3500 lbf
Nominal Forces Nominal Tensile Force
865 kgf | 1907 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Carbon Steel
Technical Specs Brands
Nitlock | Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Carbon Steel
