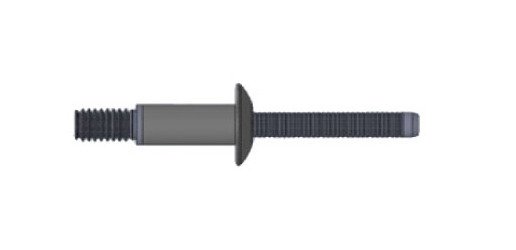

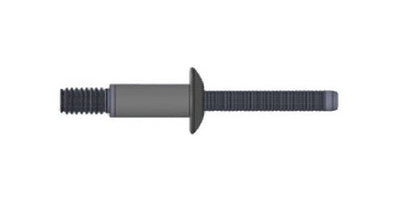

Nitlock 14.2mm Steel Truss Head Rivet
Nitlock 14.2mm Steel Truss Head Rivet
SKU:NIT-b0706a
High-strength steel rivet with double locking system for secure fastening, ideal for renewable energy applications like solar frames.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Nitlock 14.2mm Steel Truss Head Rivet
$59.99
Quantity: 1
Claim Your Seller Account
Nitlock 14.2mm Steel Truss Head Rivet
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

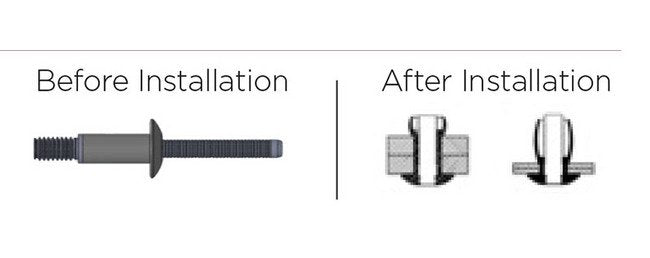

The Nitlock 14.2mm Steel Truss Head Rivet is a high-strength structural rivet with a double locking system that ensures flush break and vibration resistance. Made of low carbon steel with zinc plated chromium VI-free passivation, this rivet offers exceptional durability. With a wide grip range of 2.5mm to 9.5mm, it provides reliable fastening in various applications, especially in renewable energy like solar frames. Featuring a nominal shear force of 1590 kgf and a tensile force of 865 kgf, this rivet exceeds industry standards for secure and long-lasting connections.
Product Specifications
Applications Renewable Energy Application
Solar FrameStructural rivet with high strength comes with Double locking system. Always flush break and Vibration resistance. has a Wide grip range.
Nominal Dimensions Body Length
14.2 mm | 0.559 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.63 to 6.90 mm | 0.261 to 0.272 in
Nominal Dimensions Head Diameter
14.6 mm | 0.575 in
Nominal Dimensions Head Thickness
2.9 mm | 0.114 in
Nominal Dimensions Mandrel Diameter
4.10 mm | 0.161 in
Nominal Dimensions Maximum Grip Range
9.5 mm | 0.374 in
Nominal Dimensions Minimum Grip Range
2.5 mm | 0.098 in
Nominal Forces Nominal Shear Force
1590 kgf | 3500 lbf
Nominal Forces Nominal Tensile Force
865 kgf | 1907 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Nitlock | Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Truss
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Carbon Steel
