Nitlock 15.5mm Steel Protruding Head Rivet
Nitlock 15.5mm Steel Protruding Head Rivet
SKU:NIT-ebc75a
High-strength Nitlock 15.5mm rivet with double locking system, flush break, vibration resistance. Ideal for renewable energy applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Nitlock 15.5mm Steel Protruding Head Rivet
$49.99
Quantity: 1
Claim Your Seller Account
Nitlock 15.5mm Steel Protruding Head Rivet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

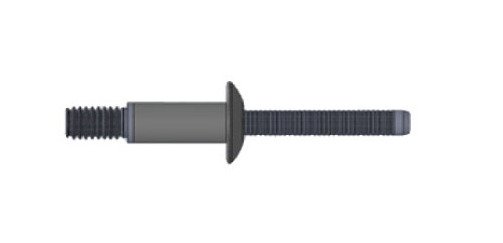

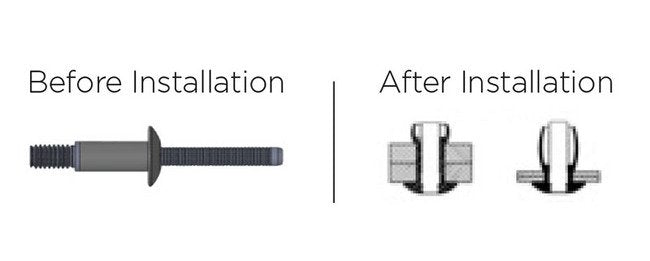

The Nitlock 15.5mm Steel Protruding Head Rivet offers exceptional strength and reliability for structural applications. With a double locking system, it ensures a flush break and high vibration resistance. Made of carbon steel with zinc plated chromium VI free passivation, it provides durability and corrosion resistance. This rivet boasts a wide grip range and meets stringent industry standards for renewable energy applications, making it ideal for solar frame installations.
Product Specifications
Applications Renewable Energy Application
Solar FrameStructural rivet with high strength comes with Double locking system. Always flush break and Vibration resistance. has a Wide grip range.
Nominal Dimensions Body Length
15.5 mm | 0.610 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.63 to 6.90 mm | 0.261 to 0.272 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
3.0 mm | 0.118 in
Nominal Dimensions Mandrel Diameter
4.10 mm | 0.161 in
Nominal Dimensions Maximum Grip Range
11.1 mm | 0.437 in
Nominal Dimensions Minimum Grip Range
4.7 mm | 0.185 in
Nominal Forces Nominal Shear Force
1590 kgf | 3500 lbf
Nominal Forces Nominal Tensile Force
865 kgf | 1907 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Carbon Steel
Technical Specs Brands
Nitlock | Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Carbon Steel
