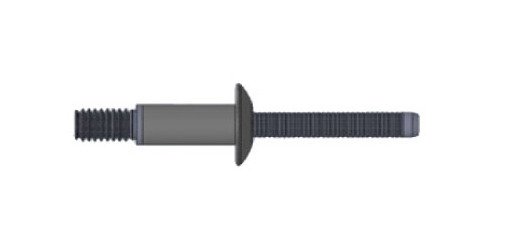

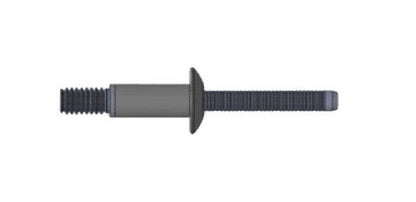

Nitlock 15.5mm Steel Truss Head Rivet
Nitlock 15.5mm Steel Truss Head Rivet
SKU:NIT-36f838
High-strength steel truss head rivet with unmatched durability and wide grip range for secure fastening in renewable energy applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nitlock 15.5mm Steel Truss Head Rivet
$29.99
Quantity: 1
Claim Your Seller Account
Nitlock 15.5mm Steel Truss Head Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nitlock 15.5mm Steel Truss Head Rivet is a high-strength structural rivet with a double locking system, ensuring always flush break and vibration resistance. Made of low carbon steel with zinc plated chromium VI-free passivation, it offers exceptional durability. With a wide grip range and nominal shear force of 1590 kgf, this rivet is ideal for renewable energy applications like solar frames. Trust Nitlock for top-quality riveting solutions that meet stringent industry standards.
Product Specifications
Applications Renewable Energy Application
Solar FrameStructural rivet with high strength comes with Double locking system. Always flush break and Vibration resistance. has a Wide grip range.
Nominal Dimensions Body Length
15.5 mm | 0.610 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.63 to 6.90 mm | 0.261 to 0.272 in
Nominal Dimensions Head Diameter
14.6 mm | 0.575 in
Nominal Dimensions Head Thickness
2.9 mm | 0.114 in
Nominal Dimensions Mandrel Diameter
4.10 mm | 0.161 in
Nominal Dimensions Maximum Grip Range
11.1 mm | 0.437 in
Nominal Dimensions Minimum Grip Range
4.7 mm | 0.185 in
Nominal Forces Nominal Shear Force
1590 kgf | 3500 lbf
Nominal Forces Nominal Tensile Force
865 kgf | 1907 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Nitlock | Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Truss
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Carbon Steel
