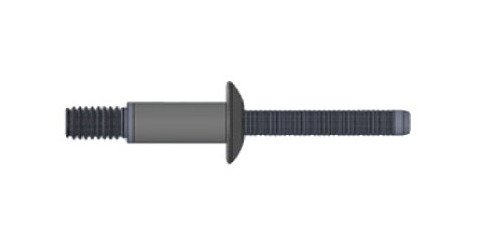

Nitlock 20.5mm Steel Protruding Head Rivet
Nitlock 20.5mm Steel Protruding Head Rivet
SKU:NIT-c67c48
High-strength Nitlock Steel Rivet with double locking system, flush break, and vibration resistance for structural applications. Ideal for solar frames and renewable energy projects.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nitlock 20.5mm Steel Protruding Head Rivet
$29.99
Quantity: 1
Claim Your Seller Account
Nitlock 20.5mm Steel Protruding Head Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nitlock 20.5mm Steel Protruding Head Rivet offers exceptional strength and durability for structural applications, featuring a double locking system, flush break design, and excellent vibration resistance. Constructed with high-quality Carbon Steel body and mandrel materials with Zinc Plated Chromium VI Free Passivation finish, this rivet ensures reliable performance. With a wide grip range and nominal forces of 1590 kgf shear force and 865 kgf tensile force, it is ideal for renewable energy applications like solar frames. Trust Nitlock for secure, long-lasting connections that meet the highest standards of quality and performance.
Product Specifications
Applications Renewable Energy Application
Solar FrameStructural rivet with high strength comes with Double locking system. Always flush break and Vibration resistance. has a Wide grip range.
Nominal Dimensions Body Length
20.5 mm | 0.807 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.63 to 6.90 mm | 0.261 to 0.272 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
3.0 mm | 0.118 in
Nominal Dimensions Mandrel Diameter
4.10 mm | 0.161 in
Nominal Dimensions Maximum Grip Range
15.9 mm | 0.626 in
Nominal Dimensions Minimum Grip Range
9.5 mm | 0.374 in
Nominal Forces Nominal Shear Force
1590 kgf | 3500 lbf
Nominal Forces Nominal Tensile Force
865 kgf | 1907 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Carbon Steel
Technical Specs Brands
Nitlock | Ornit
Technical Specs Carton Quantity
1500
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Carbon Steel
