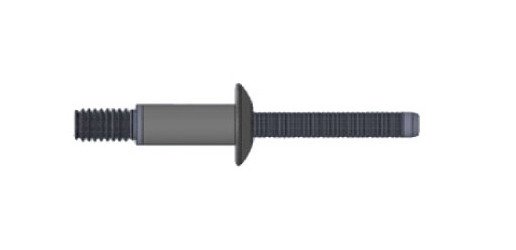

Nitlock 20.5mm Steel Truss Rivet
Nitlock 20.5mm Steel Truss Rivet
SKU:NIT-87f0c5
High-strength Nitlock Steel Truss Rivet with double locking system, vibration resistance, and wide grip range. Ideal for renewable energy applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nitlock 20.5mm Steel Truss Rivet
$29.99
Quantity: 1
Claim Your Seller Account
Nitlock 20.5mm Steel Truss Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

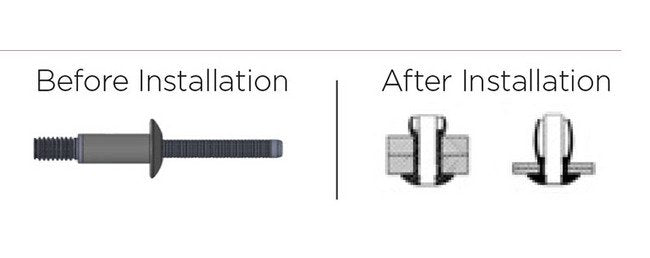

The Nitlock 20.5mm Steel Truss Head Rivet is a high-strength structural rivet featuring a double locking system for secure fastening. With superior vibration resistance and a wide grip range, this rivet ensures a flush break every time. Made of low carbon steel with zinc plating, it meets stringent industry standards, making it ideal for renewable energy and construction applications, such as solar frame installations.
Product Specifications
Applications Renewable Energy Application
Solar FrameStructural rivet with high strength comes with Double locking system. Always flush break and Vibration resistance. has a Wide grip range.
Nominal Dimensions Body Length
20.5 mm | 0.807 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.63 to 6.90 mm | 0.261 to 0.272 in
Nominal Dimensions Head Diameter
14.6 mm | 0.575 in
Nominal Dimensions Head Thickness
2.9 mm | 0.114 in
Nominal Dimensions Mandrel Diameter
4.10 mm | 0.161 in
Nominal Dimensions Maximum Grip Range
15.9 mm | 0.626 in
Nominal Dimensions Minimum Grip Range
9.5 mm | 0.374 in
Nominal Forces Nominal Shear Force
1590 kgf | 3500 lbf
Nominal Forces Nominal Tensile Force
865 kgf | 1907 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Nitlock | Ornit
Technical Specs Carton Quantity
1500
Technical Specs Head Style
Truss
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Carbon Steel
