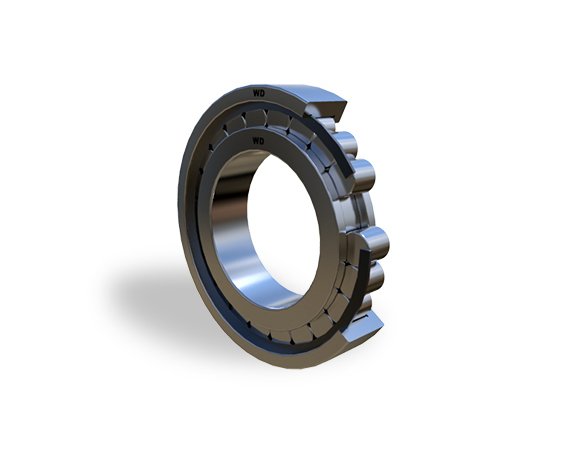

NJ/NCF-V Single Row Cylindrical Roller Bearings

Name: NJ/NCF-V Single Row Cylindrical Roller Bearings
Brand: WD Bearings
SKU: CYL-1d05ac
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-1d05ac

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

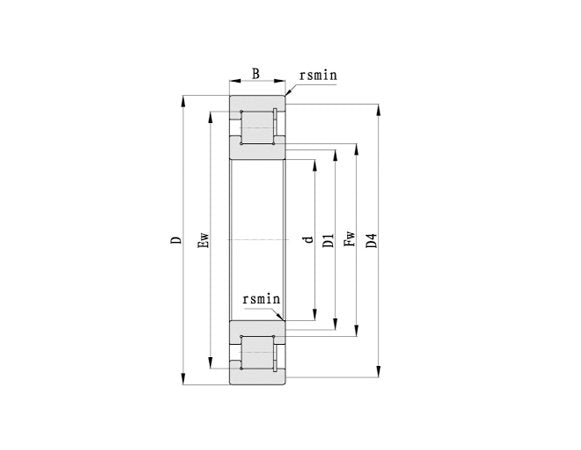

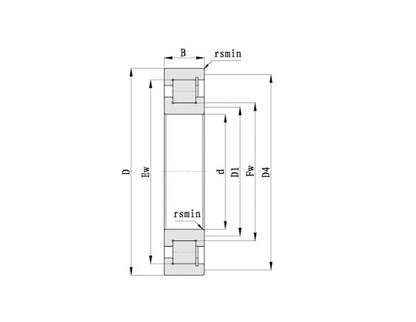

Product Specifications

Dimensions Bore Diameter

190 mm

Dimensions Dimension E

243.5 mm

Dimensions Dimension F

205.5 mm

Dimensions Minimum Dimension Rs

2 mm

Dimensions Outside Diameter

260 mm

Dimensions Overall Bearing Width

42 mm

Load Rating Dynamic Cr Load Rating

405 kN

Load Rating Static Cor Load Rating

735 kN

Specifications Limiting Speed

950 rpm

Specifications Mass

6.61 kg

NJ/NCF-V Single Row Cylindrical Roller Bearings
