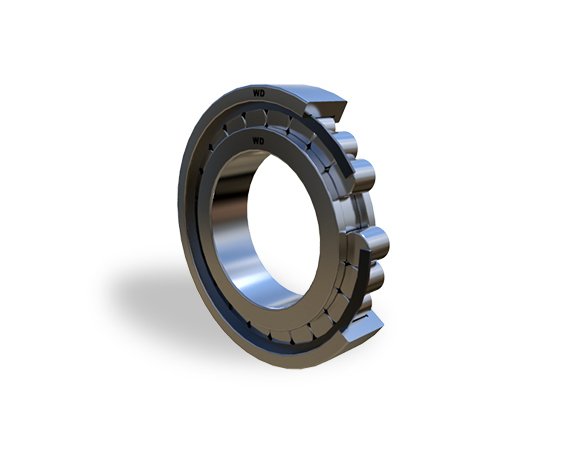

NJ/NCF-V Single Row Cylindrical Roller Bearings

Name: NJ/NCF-V Single Row Cylindrical Roller Bearings
Brand: WD Bearings
SKU: CYL-56e63f
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-56e63f

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

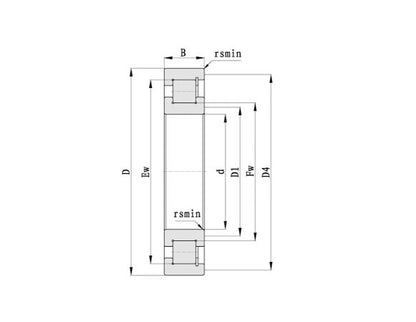

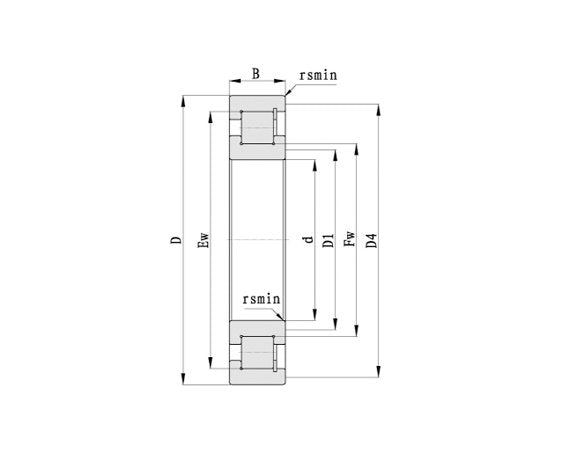

Dimensions Bore Diameter

260 mm

Dimensions Dimension E

376.1 mm

Dimensions Dimension F

286.1 mm

Dimensions Minimum Dimension Rs

4 mm

Dimensions Outside Diameter

400 mm

Dimensions Overall Bearing Width

104 mm

Load Rating Dynamic Cr Load Rating

1560 kN

Load Rating Static Cor Load Rating

2600 kN

Specifications Limiting Speed

600 rpm

Specifications Mass

44.7 kg

NJ/NCF-V Single Row Cylindrical Roller Bearings
