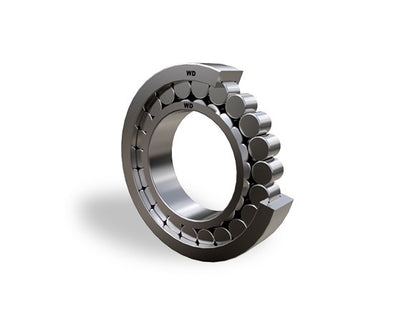

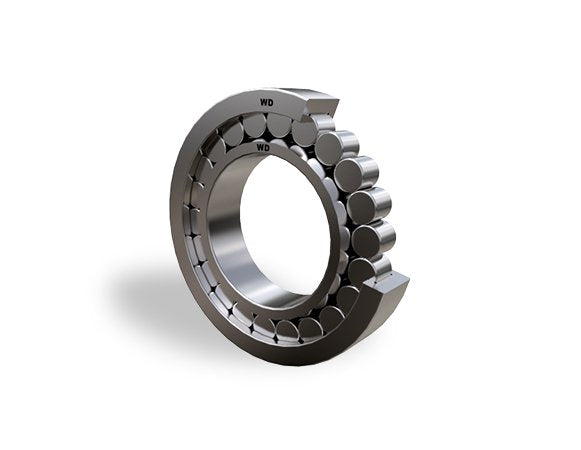

NJ/NCF-V Single Row Cylindrical Roller Bearings

Name: NJ/NCF-V Single Row Cylindrical Roller Bearings
Brand: WD Bearings
SKU: CYL-4e2186
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-4e2186

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

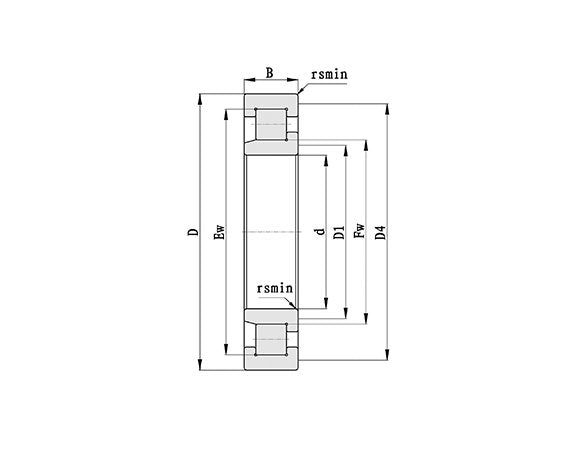

Product Specifications

Dimensions Bore Diameter

90 mm

Dimensions Dimension E

165.3 mm

Dimensions Dimension F

105.3 mm

Dimensions Minimum Dimension Rs

3 mm

Dimensions Outside Diameter

190 mm

Dimensions Overall Bearing Width

64 mm

Load Rating Dynamic Cr Load Rating

520 kN

Load Rating Static Cor Load Rating

655 kN

Specifications Limiting Speed

1800 rpm

Specifications Mass

8.82 kg

NJ/NCF-V Single Row Cylindrical Roller Bearings
